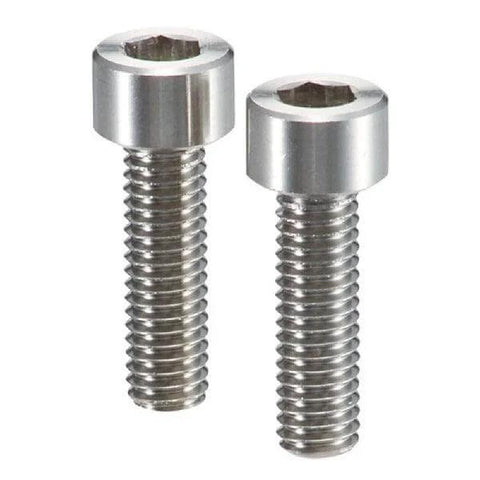

SNSI-M3-6 NBK Socket Head Cap Screw - Inconel equiv.- Made in Japan
SNSI-M3-6 NBK Socket Head Cap Screw - Inconel equiv.- Made in Japan
NBK

SNSI-M3-6 NBK Socket Head Cap Screw - Inconel equiv.- Japan Made


$129.42 CAD $174.71 CADyou save $45.29 CAD
SKU: SNSI-M3-6-NBK
UPC: 0
Item: SNSI-M3-6 NBK
Socket Head Cap Screw - Inconel equiv.
Quantity : One Screw
NBK Made in Japan


SNSI-M3-6 NBK Socket Head Cap Screw - Inconel equiv.
Made in Japan
One Screw

Characteristics:
  • Screws show excellent corrosion resistance against oxidizing and reducing by inorganic and organic acids.
  • Main Body: UNS N06600(Inconel: 1600 equiv.‚Äπ¬¨?
  • Excellent resistance to stress corrosion cracking caused by hydrogen sulfide ions.
  • Excellent heat resistance and creep resistance. High strength even near 600 deg C.
  • Nearly complete corrosion resistance against ammonia.
Application:

FPD production equipment, semiconductor devices, printed circuit boardetching devices, metallic surface treatment equipment and facilities,and chemical plants

Physical property:
  • Specific Gravity: 8.42
  • Specific heat (J/kg.K): 444
  • Longitudinal Elastic Modulus(GPa): 207
  • Linear expansion coefficient (K-1): 13.4x10-6
  • Thermal Conductivity ( w/(m.k) ): 16.7
  • Electric resistance ( m): 1.0

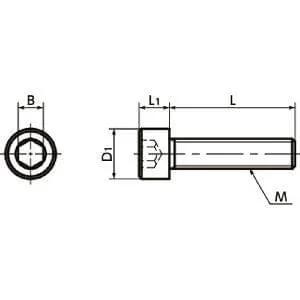

Part Number M L D1 L1 B Tension Rupture Load(N)*1 Quantity Per Pack
SNSI-M3-6-NBK M3 6mm 5.5mm 3mm 2.5mm 2750 N 1
*1: ???Values in chart are for reference only. They are not guaranteed values.
