Soft Close Cabinet Hinges For 1/2 Inch Overlay, 10 Pack, 108 Degree Opening, Screw-On Wrap Around Mount, 3-Way In Out Cam Adjustment, 45mm Screw Hole Pattern, Grass TEC 864 Compatible, 04431A-15, Made In USA
UPC:
✔️ 108-degree opening, 3-way cam adjustment, wrap-around mount, USA made
These soft-close cabinet hinges are designed for face-frame cabinets with a 1/2 in overlay. This 10-pack includes mounting screws and a pre-installed damping system for quick, reliable operation in kitchen, bath, and workshop cabinets.
✅ 1/2 in overlay soft-close hinge; 108° opening for wide access
✅ Screw-on wrap-around mount; includes 2x #6 x 5/8" wood screws and 1x #10 x 3/4" wood screw per hinge
✅ 3-way in/out cam adjustment; front locating tabs help precise positioning

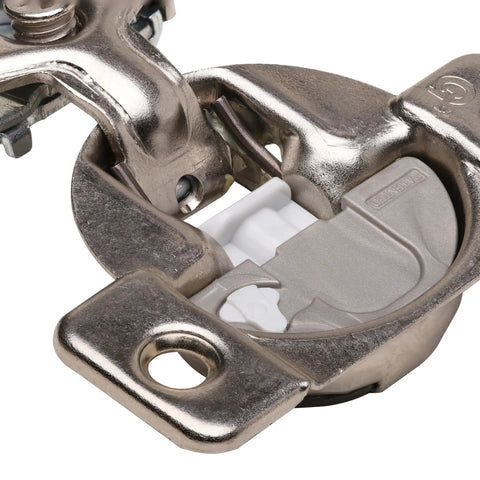

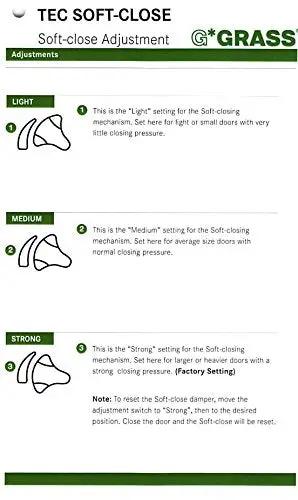

✅ Premounted soft-close damper with 3 strength settings (off, low, high)
✅ Cup bore diameter 35 mm (1-3/8"); drilling depth 11 mm (7/16"); 45 mm screw hole distance
✅ Hinge type: face-frame; series TEC 864; material steel with solid metal cup
✅ Pack size: 10 hinges; finish: silver; closing mechanism: soft-close

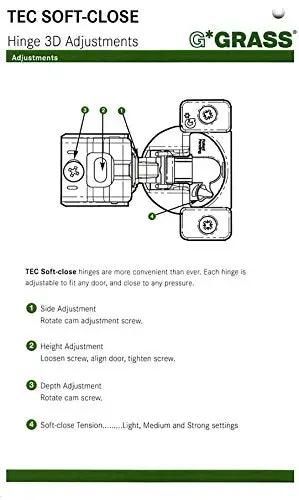

✅ Overlay: 1/2 in; height cam adjust: ±2 mm; depth cam: +2.5 mm / -5 mm; side cam: ±1.5 mm
💡 What is a soft close cabinet hinge used for in cabinetry? A handy damped hinge that slows the door as it closes to prevent slams and protect fingers. - Improves safety by reducing pinch points in cabinetry - Helps keep doors aligned with adjustable cams and mounting points - Makes retrofits easier on face-frame cabinets with 1/2 in overlay
