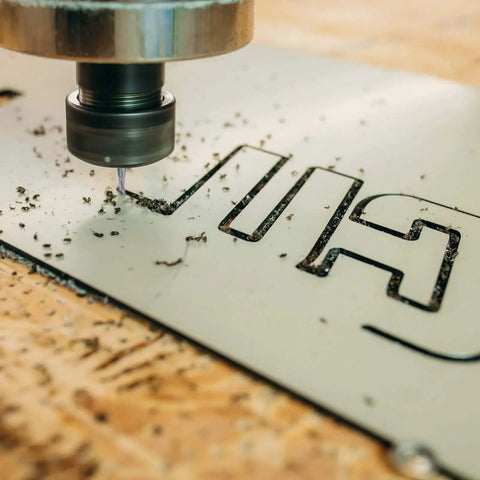

Spiral Router Bit For CNC Wood Carving And Engraving With Up Cut Two Flute Solid Carbide End Mill Quarter Inch Shank in action

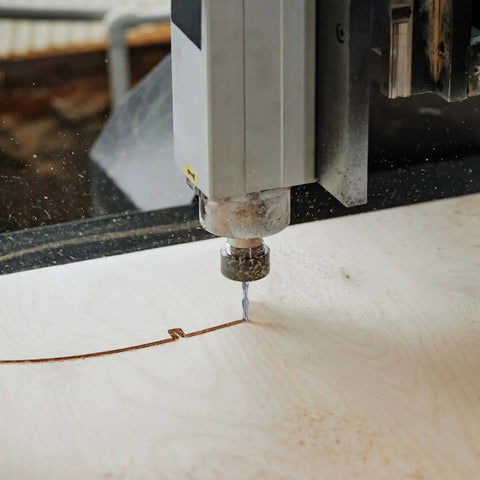

Spiral Router Bit For CNC Wood Carving And Engraving With Up Cut Two Flute Solid Carbide End Mill Quarter Inch Shank One And A Half Inch Cut Length AlTiN Coated Harfington at work

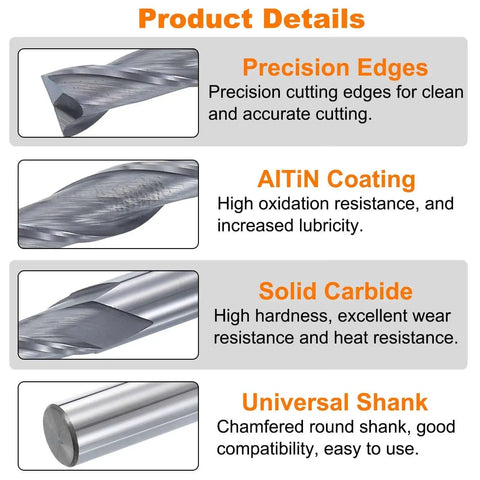

Spiral Router Bit For CNC Wood Carving And Engraving With Up Cut Two Flute Solid Carbide End Mill Quarter Inch Shank AlTiN Coated Harfington

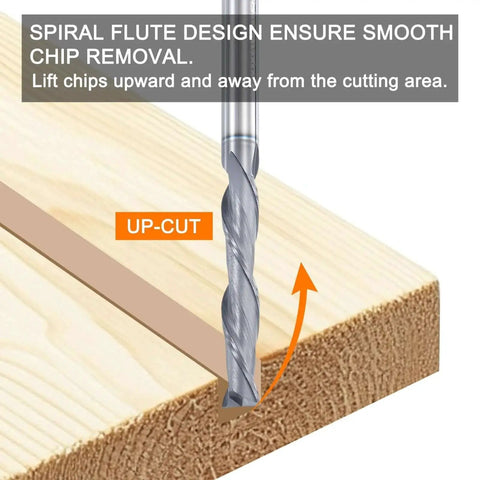

Spiral Router Bit For CNC Wood Carving And Engraving With Up Cut Two Flute Solid Carbide End Mill Quarter Inch Shank One And A Half Inch Cut Length AlTiN Coated Harfington cutting wood with up-cut design.

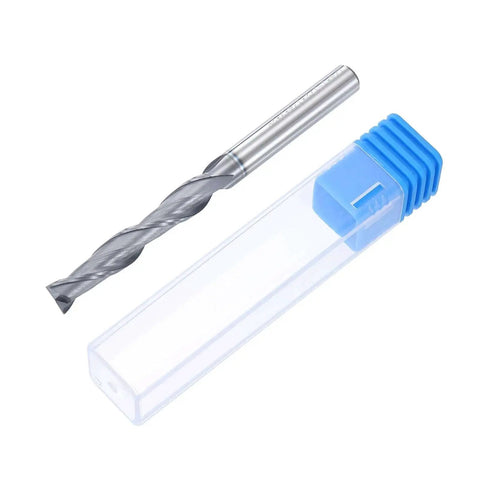

Spiral Router Bit For CNC Wood Carving And Engraving With Up Cut Two Flute Solid Carbide End Mill Quarter Inch Shank One And A Half Inch Cut Length AlTiN Coated Harfington shown with blue-capped case.

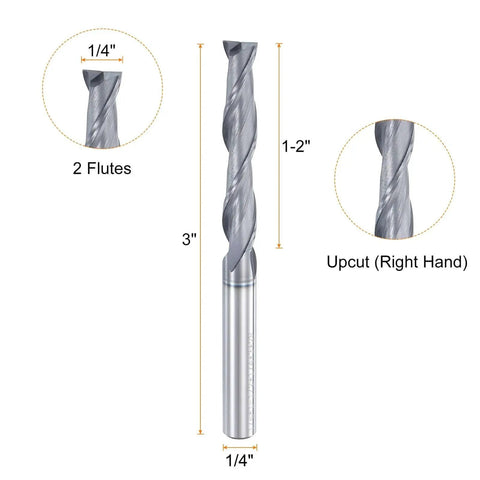

Spiral Router Bit For CNC Wood Carving And Engraving With Up Cut Two Flute Solid Carbide End Mill Quarter Inch Shank One And A Half Inch Cut Length AlTiN Coated Harfington with dimensions and features
Bearings Canada

Spiral Router Bit For CNC Wood Carving And Engraving With Up Cut Two Flute Solid Carbide End Mill Quarter Inch Shank One And A Half Inch Cut Length AlTiN Coated Harfington


$57.09 CAD $114.21 CADyou save $57.12 CAD
SKU: VXB0DLKR77X8
UPC: 00193019808504






Single-piece up-cut spiral router bit, 1/4in, 2-flute
✔️ 1/4 in dia, 1-1/2 in cut length, 30° helix, AlTiN coated

Designed for CNC wood carving and engraving, this up-cut two-flute tungsten carbide router bit delivers clean edges and efficient chip evacuation. The AlTiN coating boosts hardness and heat resistance for dry cutting in hardwoods, softwoods, plywood, and plastics.

✅ Cutting diameter: 1/4 in (6.35 mm)
✅ Cutting length: 1-1/2 in (38.1 mm)
✅ Total length: 3 in (76.2 mm)
✅ Shank diameter: 1/4 in (6.35 mm)
✅ Helix angle: 30°
✅ Material: Solid tungsten carbide, HRC 44-46
✅ Coating: AlTiN for high-temperature wear resistance
✅ Applications: grooves, dados, mortises, and finishing in wood/plastic

💡 What is a spiral router bit used for in CNC wood carving and engraving? A handy tool for clean edges and efficient material removal. - Great for grooves, slots, and edge finishing - Up-cut design lifts chips away, improving surface finish - AlTiN coating extends tool life in dry/high-temp cutting
