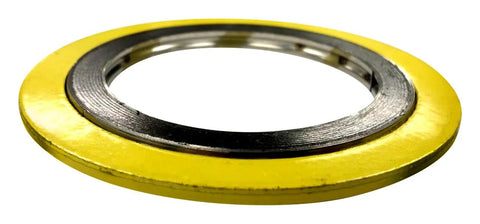

Spiral Wound Gasket With Flexible Graphite And 304SS Centering Ring For 60 Inch Pipe Size ASME B16 20 B16 47 Series A Class 150 60 Inch ID 67.5 Inch OD 900060A304GR150 For High Temp Variations And Pressure Cycling

Spiral Wound Gasket 60in, single unit, graphite filler
✔️ 60in gasket with 304SS windings and flexible graphite filler, 150

This spiral wound gasket is designed for ASME B16.20 Gaskets for ASME B16.47 Series A Flanges / Class 150, sized for 60 inch pipe. It features a centering ring that accurately locates the gasket on the flange face, provides extra radial strength, and acts as a compression limiter.

✅ 60 in pipe size for high flow applications
✅ ASME B16.20 and B16.47 Series A Class 150 compatible
✅ 304SS windings with flexible graphite filler
✅ Centering ring locates gasket and adds radial strength
✅ Temperature -150 to 842 °F

💡 What is a spiral wound gasket with graphite filler used for in large-diameter pipe connections? This handy sealing solution is designed for tight seals on high temp and pressure cycling in ASME flange systems. - For ASME B16.20 and B16.47 Series A Class 150 interfaces - Provides centering ring to locate gasket and boost radial strength - Combines metal windings with flexible graphite filler for wide temperature range - Ideal for steam, hot water, and hydrocarbon lines with changing pressures
