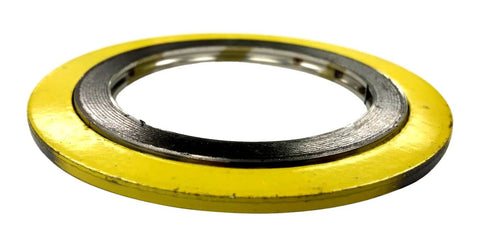

Spiral Wound Gasket For 50 Inch Pipe, 300 Class, 304 Stainless Steel With Flexible Graphite Fill, Teadit 900050A304GR300 Includes Centering Ring, ASME B16 20 And ASME B16 47 Series A Flanges, Great For High Temp Cycling And Pressure Variations

Spiral Wound Gasket for 50 Inch Pipe, 304SS Graphite Fill
✔️ Includes centering ring, fits ASME B16.20/47, Class 300

This spiral wound gasket is designed for large-diameter piping systems using ASME B16.20 and ASME B16.47 Series A flanges in Class 300 service. It features 304 stainless steel windings with a flexible graphite filler and includes a centering ring to ensure proper seating and concentrated compression. Ideal for high-temperature cycling and varying pressure conditions, this gasket pairs durability with easy installation and removal.

✅ Pipe size: 50 inch (1270 mm) for large-diameter piping
✅ Flange compatibility: ASME B16.20 and ASME B16.47 Series A, Class 300
✅ Material: 304 stainless steel windings with flexible graphite filler
✅ Centering ring included for accurate seating and compression limiting
✅ Temperature range: -150 to 842 °F (-101 to 450 °C)
✅ Sealing performance: suited for high-temp cycling and pressure variation

💡 What is a spiral wound gasket used for in ASME flange connections? This handy sealing solution is commonly used in large-diameter piping systems to seal joints where there are temperature swings and pressure changes. - Spiral wound gaskets provide a robust seal by combining a metal winding with a flexible graphite filler - They are ideal for high temperature cycling and pressure variation in Class 300 service - The centering ring helps locate the gasket and limits compression for a consistent seal - Materials like 304 stainless steel windings with graphite filler resist corrosion and maintain stability across temperatures
