Spiral Wound Gasket For High Temperature Variations And Thermal Cycling One And A Half Inch Inconel 600 Flexible Graphite ASME B16 20 Class 2500 Flange Gasket With Centering Ring Pack Of 6 Ideal For Harsh Piping And Long Lasting Seals
UPC: 00193019752036
✔️ ASME B16.20 Class 2500 gasket with center ring, graphite filler, 6 pcs
This spiral wound gasket uses Inconel 600 windings with a flexible graphite filler, delivering reliable seals on high-temperature piping. It's designed for ASME B16.20 Class 2500 flanges and is ideal for harsh piping environments and long-term service.
✅ 1-1/2 inch pipe size matched to ASME B16.5 2500# flanges
✅ Inconel 600 windings with flexible graphite filler for strong, tight seals

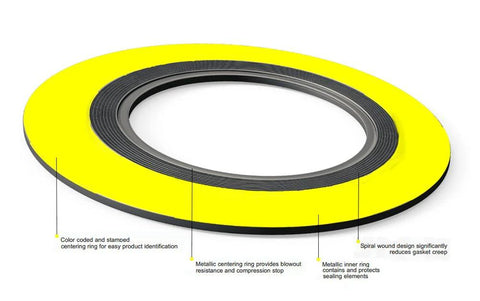

✅ Centering ring locates gasket accurately, adds radial strength, limits compression
✅ Wide temperature range -150 to 850 °F (-101 to 454 °C)

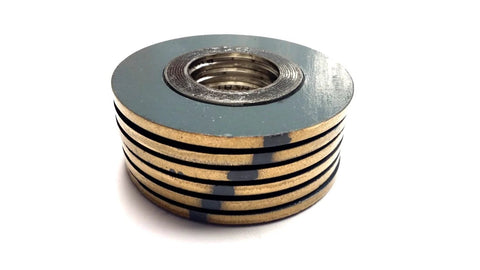

✅ Pack of 6 for multiple joints and reliable service life
💡 What is a spiral wound gasket used for in high-temperature piping? This handy gasket type provides reliable seals across thermal cycles in demanding systems.
- Sealing joints in steam and chemical lines under high heat
- Handles repetitive thermal cycling with stable compression
- Offers good conformability and long service life
