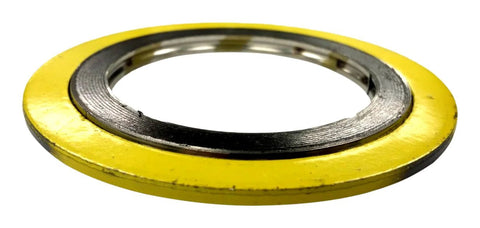

Spiral Wound Gasket For High Temperature Variations And Thermal Cycling On 34 Inch ASME Class 600 Flanges, 304 Stainless Steel Core With Flexible Graphite, Teadit 900034A304GR600, 35.50 Inch ID By 42.25 Inch OD For Pipe Size 34

Spiral wound gasket for 34 inch ASME Class 600 flanges - single pack
✔️ 304SS windings with graphite core, ID 35.50 in, OD 42.25 in

A high temp spiral wound gasket designed for ASME B16.20 Gaskets on Series A flanges Class 600. It features a centering ring for accurate seating and radial strength, and a spiral winding of metal and graphite filler for a tight seal during thermal cycling.

✅ 304 stainless steel windings with flexible graphite filler for high temp sealing
✅ Fits ASME B16.20 Gaskets for ASME B16.47 Series A Flanges Class 600, 34 in pipe
✅ ID 35.50 in (901.7 mm) and OD 42.25 in (1073.2 mm)
✅ Temperature range -150 to 842 F for thermal cycling
✅ Centering ring locates gasket precisely and limits compression during bolt-up

💡 What is a spiral wound gasket used for on large ASME flange connections and why choose graphite filler?

Spiral wound gaskets with graphite filler are handy for sealing high temp piping and equipment.
- Spiral wound gasket with graphite filler for high temp flange seals on ASME B16.20 Class 600
- Centering ring locates gasket precisely and controls compression during bolt-up
- Temperature range -150 to 842 F supports thermal cycling without leakage
