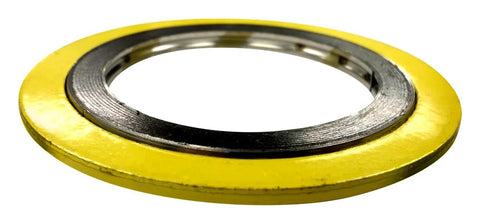

Spiral Wound Gasket For High Temperature Variations And Thermal Cycling 52 Inch Pipe Size With 400 Class ASME B16.20 Compliance 53 Inch ID 57.25 Inch OD 304 Stainless Steel Core And Flexible Graphite Sealing Heavy Duty Teadit 900052A304GR400

High-Temp Spiral Wound Gasket for 26 in Pipe, Class 400
✔️ 304SS windings with graphite filler, 53 in ID, 57.25 in OD

This single gasket is designed for high-temperature piping and is typically used on ASME B16.20 / B16.47 Series A Class 400 flange connections. The centering ring locates the gasket precisely on the flange face, adds radial strength, and acts as a compression limiter for consistent seal performance. The winding combines a robust 304 stainless steel core with a flexible graphite sealing filler to deliver reliable sealing across thermal cycles and wide temperature swings.

Dimension	Value
Pipe Size	26 in
ID	53 in
OD	57.25 in

✅ 26 in pipe size, 150# flange compatibility
✅ 304 stainless windings with graphite filler
✅ Centering ring aids precise alignment and compression control
✅ Temperature range -150 to 842 F for demanding service

💡 What is a spiral wound gasket used for in high-temperature piping? - Handy sealing for high-temp steam and hot fluids on ASME flange connections - Provides flexibility with metal windings and a filler to accommodate surface irregularities - Ideal for thermal cycling and pressure surges in power generation, petrochemical plants - Compatible with ASME B16.20 and B16.47 Series A Class 400 flange standards
