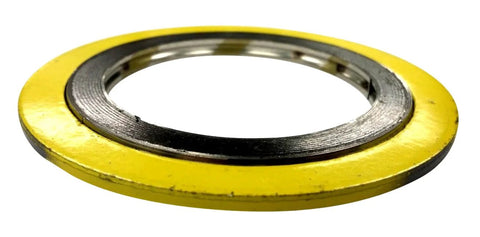

Spiral Wound Gasket For High Temperature Variations And Pressure Cycling Heavy Duty 32 Inch 600 Class 304 Stainless Steel With Flexible Graphite Sealing Element Ideal For ASME B16 20 Gaskets And ASME B16 47 Series A Flanges Teadit 900032A304GR600

Heavy-Duty Spiral Wound Gasket for 26-inch ASME Flanges
✔️ Spiral wound gasket with 304SS windings, graphite filler; single unit

This heavy-duty spiral wound gasket is designed for ASME B16.20 gasket applications on ASME B16.47 Series A flanges in Class 600. It features 304 stainless steel windings with a flexible graphite filler and a centering ring to ensure accurate flange seating on 26-inch pipe assemblies.

✅ Spiral winding: 304SS windings with flexible graphite filler for resilient seals
✅ Centering ring ensures accurate flange seating and compression limit
✅ Temperature range -150 to 842 F (-101 to 450 C) for extreme service
✅ Fits ASME B16.20 and ASME B16.47 Series A, Class 600 flanges
✅ Durable, easy installation and removal in heavy-duty piping systems

💡 What is a spiral wound gasket used for in high-temp piping? These handy seals are designed to seal large flange connections subject to heat and pressure cycling. - They handle wide temperature ranges and fluctuating pressures - Centering rings help maintain proper seating and compression - Graphite fillers resist many chemicals and offer good sealability
