Spiral Wound Gasket For High Temperature Variations And Thermal Cycling 40 Inch By 150 Class ASME B16 20 And B16 47 A Flanges 304 Stainless Steel With Flexible Graphite Centering Ring And Compression Limiter For Pipe Size 40

High-Temp Spiral Wound Gasket for 40 in ASME Flanges
✔️ 304SS windings with flexible graphite center, 26in pipe size, 150# class, single gasket

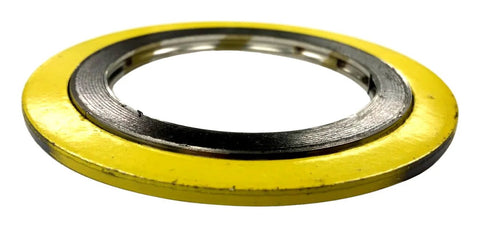

This spiral wound gasket for high-temperature service combines 304 stainless steel windings with a flexible graphite center. It's designed for ASME B16.20 and B16.47 Series A flanges and is ideal where thermal cycling and temperature swings occur.

✅ Spiral wound gasket with 304SS windings and flexible graphite filler
✅ Centering ring locates gasket on flange face and acts as compression limiter
✅ Temperature range -150 to 842°F (-100 to 450°C)
✅ Compatible with ASME B16.20, B16.47 Series A Class 150 flanges on 26in pipe

💡 What is a spiral wound gasket used for in high-temperature piping systems?

Spiral wound gaskets are handy for sealing joints in hot piping where thermal cycling occurs. - Handy for high-temperature service with pressure variation - Combines metal winding and flexible graphite filler for durability - Works with ASME B16.20 and B16.47 Series A Class 150 flanges - Maintains seal during thermal cycling and vibration
