Spiral Wound Gasket With Center Ring For Tough Temps And Big Pressure Variations, 58 Inch Class 600 Flange Gasket, 60.50 Inch ID, 65.50 Inch OD, 304 Stainless Steel Core With Flexible Graphite Fill, Fits ASME B16.20 B16.47 Series A

Spiral Wound Gasket with Center Ring for Class 600 Flanges
✔️ 304SS windings with graphite filler, 26-inch pipe, -150°F to 842°F

This spiral wound gasket pairs 304 stainless steel windings with a flexible graphite filler, designed to seal ASME B16.20 B16.47 Series A Class 600 flanges. It's engineered to perform in systems that experience large temperature swings and fast pressure variations, making it a solid choice for oil, gas, chemical, and power industries.

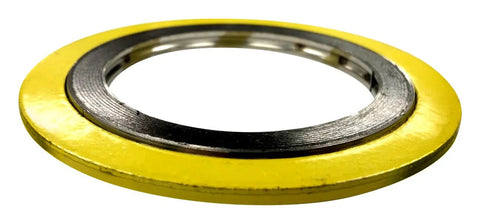

✅ Spiral wound gasket with center ring for precise seating on flange face
✅ 304 stainless steel windings with flexible graphite filler for broad temperature range
✅ Fits ASME B16.20 B16.47 Series A Class 600 flanges
✅ Temperature range -150°F to 842°F (-101°C to 450°C)
✅ Pipe size 26 inches; ID 60.50 inches (1535 mm), OD 65.50 inches (1663 mm)
✅ Color: Yellow band with gray stripe for quick ID

💡 What is a spiral wound gasket used for in high temp piping systems? This handy seal helps manage pressure and temperature shifts in large-diameter flange connections.

• Designed for ASME B16.20/B16.47 Series A Class 600 flange connections.
• Centering ring locates the gasket on the flange face and limits compression for reliability.
• 304SS windings with flexible graphite filler resist corrosion and leaks across a wide temperature range.
