Spiral Wound Gasket Inconel 600 With Flexible Graphite For High Temperature Variations, 4 Inch Pipe Size, ASME B16.20 Class 300 Flange, Centering Ring, Thermal Cycling Ready, Model Teadit 90004600GR300 Sur Seal

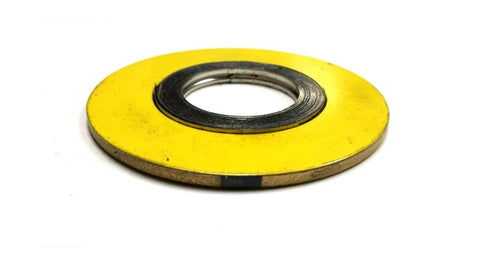

Spiral Wound Gasket Inconel 600 with Graphite Filler, 4 in
✔️ ASME B16.20 Class 300, center ring, Inconel 600 windings, single unit

This 4 inch spiral wound gasket features Inconel 600 windings and flexible graphite filler for high-temperature sealing on ASME B16.20 Class 300 flanges. It includes a centering ring to locate the gasket accurately on the flange face, adds radial strength, and acts as a compression limiter, making installation and removal easier in thermal cycling applications.

✅ Spiral wound gasket with Inconel 600 windings and flexible graphite filler
✅ 4 in pipe size, ASME B16.20 Class 300 flange compatibility
✅ Centering ring for accurate gasket location, radial strength, and compression limit
✅ Temperature range -150°F to 850°F (-101°C to 454°C), suitable for thermal cycling
✅ Durable, easy installation and removal

💡 What is a spiral wound gasket used for in high-temperature piping systems? This handy seal helps join flanged joints under heat and pressure.

- seals high-temp piping connections on ASME B16.20 Class 300 flanges
- uses Inconel 600 windings with flexible graphite filler for chemical service
- handles -150°F to 850°F (-101°C to 454°C) temperature swings
- centering ring ensures accurate gasket location and compression control
