Spiral Wound Gasket With Inconel 600 And Flexible Graphite For High Temperature Variations And Thermal Cycling, 2 Inch Pipe Size, Class 600 Flange, ASME B16 20 Gaskets For ASME B16 5 Flanges, Teadit 90002600GR600 Sur Seal

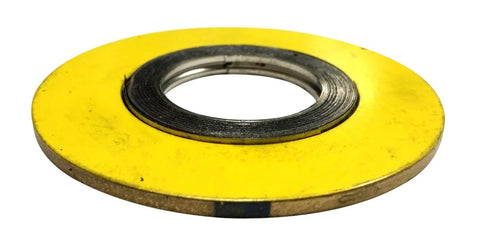

Inconel Spiral Wound Gasket for 2 in 600 Flanges, Single
✔️ 2 inch pipe size, 600 class flange, Inconel windings, graphite filler

This spiral wound gasket combines Inconel 600 windings with a flexible graphite filler to seal high-temperature, high-pressure connections. It's designed for ASME B16.20 gaskets on ASME B16.5 Class 600 flanges and is ideal for petrochemical, power generation, and refining piping systems that endure thermal cycling.

✅ Spiral winding features Inconel 600 windings and flexible graphite filler
✅ Temperature range: -150 to 850 °F

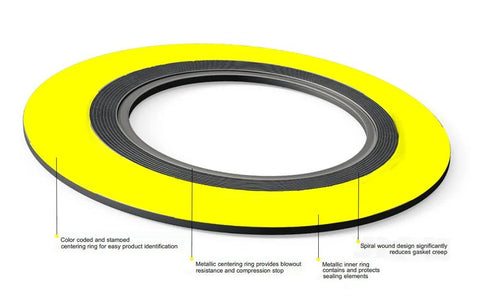

✅ Centering ring locates gasket on flange face, adds radial strength and compression limit
✅ ASME B16.20 gasket for ASME B16.5 Class 600 flanges with 2 inch pipe size
✅ Durable, easy installation and removal for maintenance

💡 What is a spiral wound gasket used for in high-temperature piping systems? This handy seal handles thermal cycling and heat in demanding flange connections. - Best for ASME B16.20 sealing on ASME B16.5 Class 600 flange connections. - Inconel 600 windings with flexible graphite filler resist high temperatures and thermal cycling. - Centering ring improves gasket alignment and provides compression control. - Ideal for petrochemical, power, and refining piping systems.
