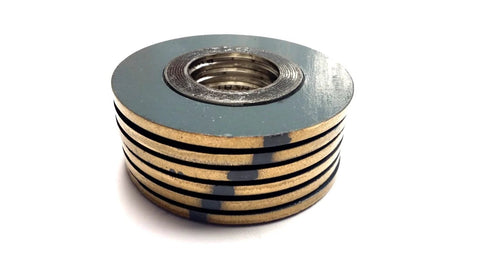

Spiral Wound Gasket With Inconel 600 And Flexible Graphite For High Temperature Variations One And A Quarter Inch Pipe Size Class 400 ASME B16 20 And B16 5 Flanges Beefy Built For Thermal Cycling Pack Of 6 With Gold Band And Gray Stripe

High-Temp Spiral Wound Gasket with Inconel 600, Pack 6
✔️ 1¼ in gasket for ASME B16.20/16.5 Class 400, -150 to 850°F

This spiral wound gasket blends Inconel 600 windings with a flexible graphite filler for sealing on ASME B16.20 gaskets for B16.5 Class 400 flanges. It's designed to handle high temperature swings and thermal cycling in piping systems, ensuring a tight seal and easy serviceability.

✅ 1-1/4 in (32 mm) pipe size, 400# class flange, ASME B16.20/B16.5
✅ Inconel 600 windings with flexible graphite filler for high-temp sealing
✅ Temperature range -150 to 850°F (-100 to 454°C)
✅ Centering ring for accurate gasket location and compression limiter

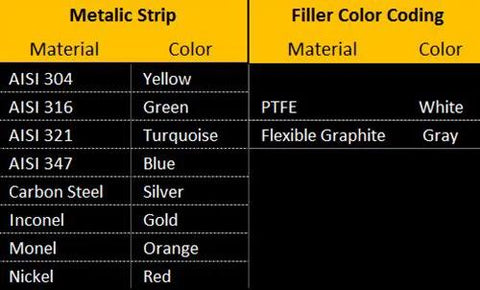

✅ Gold band with gray stripe for quick identification
✅ Pack of 6 for multiple flange installations

💡 What is a high temperature spiral wound gasket used for in ASME piping systems?

This handy gasket keeps leaks tight in hot piping systems. - Suitable for ASME B16.20/B16.5 Class 400 flanges in high-temp service - Inconel 600 windings resist heat and corrosion - Flexible graphite filler seals during thermal cycling - Centering ring improves placement and compression control
