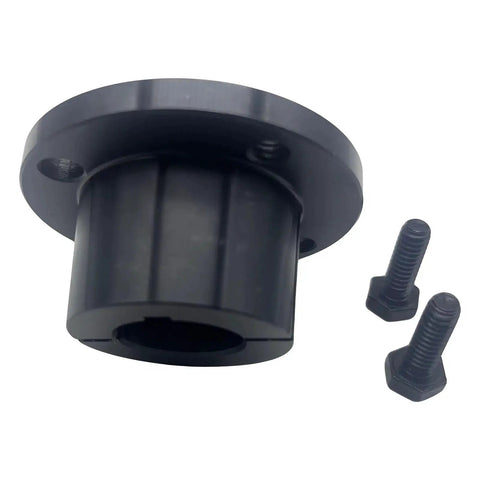

Split Taper Bushing for Pulleys H Style One And One Eighth Inch Bore CMFG STB Cast Steel Heavy Duty Locking Bushing For Pulleys And Sheaves Positive Drive Anti Rust Coating Inch And Metric Bore Options Bore Range From Three Eighths To One And A Half

1-Pack Heavy-Duty Split Taper Bushing for Pulleys
✔️ 1-1/8 in bore, cast steel, anti-rust coating; bore 3/8 to 1-1/2 in

This heavy-duty H-style split taper bushing locks pulleys and sheaves onto shafts with a positive drive. It’s a common choice for power transmission setups like belt drives and conveyors, where securing torque and easy maintenance matter. Available in inch and metric bores, it features an anti-rust coating for durability in tough environments.

✅ Bore range: 3/8 in to 1-1/2 in (9.5 mm to 38.1 mm)

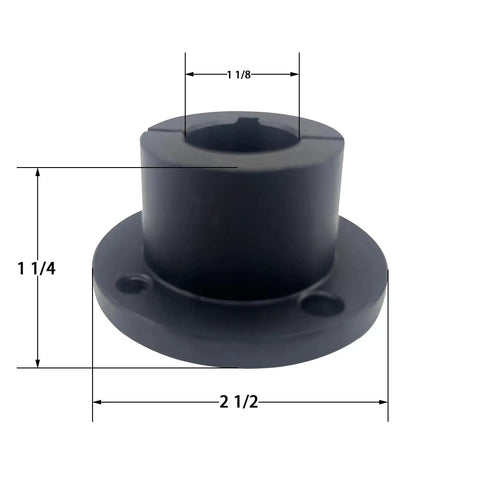

✅ Bore: 1-1/8 in (28.6 mm)
✅ Material: cast steel
✅ Screws: 1/4-20 UNC x 3/4 in, qty 2
✅ Drive: Positive drive, anti-rust coating
✅ Style: H-style bushing for pulleys and sheaves
✅ Availability: inch and metric bore options

💡 What is a split taper bushing used for in pulley systems? This handy component fits pulleys and sheaves on shafts for secure torque transmission.
- Transmits torque with a tight, positive drive in rotating assemblies
- Allows quick installation and removal without dismantling the drive
- Resists rust with anti-rust coating for durability in harsh environments
