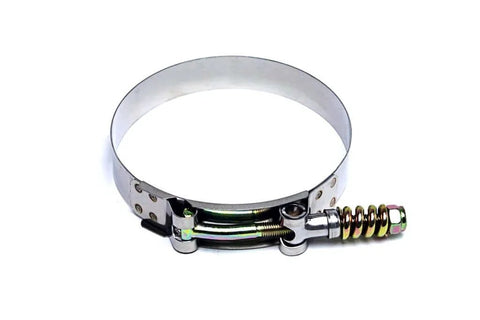

Spring Loaded Stainless Steel SAE 188 TBolt Clamp For 6.5 Inch Inside Diameter Hose 6.75 to 7.06 Inch Range 172 to 180 mm Polished Finish 1 Piece Three Quarter Inch Wide Band 300 Series Stainless Steel With Zinc Plated TBolt

Spring-Loaded T-Bolt Clamp SAE 188 for 6.5 in Hose, 1pc
✔️ 3/4 in wide band, 6.75 in to 7.06 in OD, 300-series SS, zinc T-bolt

HPS Stainless Steel Spring Loaded T-Bolt Clamp SAE 188 sized for 6.75 inches to 7.06 inches (172 mm to 180 mm) hose, 1 piece. It is designed for high-vibration environments across automotive, aerospace, industrial, marine, and heavy-duty piping, and is reusable for long-term use.

✅ Size #188, effective diameter 6.75 in to 7.06 in (172-180 mm)
✅ Nominal diameter 7 in (178 mm)
✅ 3/4 in wide 300-series stainless steel band and trunnion
✅ Zinc plated T-bolt, nut and springs; nylon insert lock nut 7/16 in head
✅ Fits 6.5 in ID hose (165 mm ID)
✅ Max torque 75 in-lbs (8.5 N·m)

💡 What is the benefit of a spring-loaded T-bolt clamp in high-vibration hose assemblies?

- Handy spring automatically adjusts diameter for temperature and pressure changes
- Keeps a tight seal in CAC, aircraft, automotive, marine, and industrial piping
- Built from 300-series stainless steel with zinc T-bolt and nylon insert nut
- Reusable design reduces downtime and maintenance costs
