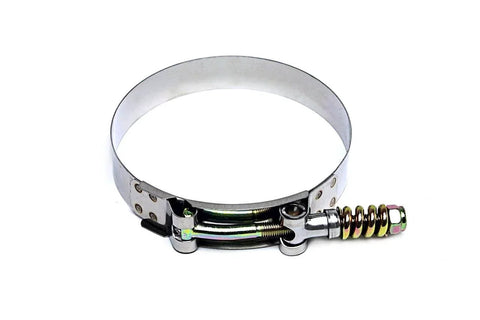

Spring Loaded Stainless Steel T Bolt Clamp SAE 108 For 4 Inch ID Hose Polished 1 Piece Fits 4.25 To 4.57 Inch 108 To 116 Mm Delivers Uniform Sealing Pressure Prevents Hose Extrusion

Spring Loaded T-Bolt Clamp for 4 in Hose, 1 Piece
✔️ 4.25-4.57 in range (108-116 mm) SAE 108 clamp for 4 in hose

This stainless steel spring-loaded T-bolt clamp is designed to secure 4" ID hoses in high-vibration environments such as CAC, automotive, marine, industrial, and aerospace systems. It automatically adjusts to hose expansion and contraction due to temperature and pressure changes.

✅ 300 Series stainless steel band and trunnion
✅ 4.25"-4.57" (108-116 mm) effective size
✅ 3/4" wide band
✅ Zinc plated T-bolt, nut and springs
✅ Max torque 75 in-lbs
✅ Floating bridge and rolled edges protect soft hoses
✅ Reusable with nylon insert nut to prevent backing out

💡 What is a spring loaded T-bolt clamp used for in high-vibration hose assemblies? This handy device helps maintain a tight seal under dynamic loads. - Maintains constant tension across temperature and pressure changes - Suited for CAC, automotive, marine, and industrial hose systems - Reusable and adjustable for multiple hose sizes - Provides uniform sealing pressure around the hose circumference
