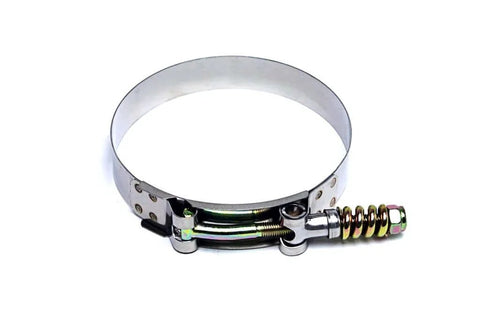

Spring Loaded Stainless Steel T Bolt Clamp SAE 140 For Five Inch ID HPS Silicone Hose Five And A Half Inch Nominal Range 133mm To 141mm Zinc Plated T Bolt Nut And Springs For Uniform Sealing Pressure And Against Hose Extrusion 1 Piece

Spring Loaded Stainless T-Bolt Clamp 5in ID Hose 1pc
✔️ 5.24-5.55 in range, 0.75 in band, 75 in-lb torque

HPS Stainless Steel Spring Loaded T-Bolt Clamp sized 5.24"-5.55" (133-141 mm) for 5" ID hoses, delivering a 360-degree seal. This clamp is built for high-vibration and large-diameter applications like CAC systems, aircraft, automotive, marine, and industrial setups. It’s reusable and features a floating bridge with rolled edges to protect soft hoses.

✅ Size #140; effective diameter 5.24-5.55 in (133-141 mm)
✅ 3/4 in wide 300 Series stainless steel band and trunnion
✅ Zinc plated T-bolt, nut and springs
✅ 7/16 in head nylon nut
✅ Max torque: 75 in-lbs
✅ Reusable with floating bridge and rolled edges to protect hose
✅ Fits 5 in ID hoses (HPS silicone)

💡 What is a spring loaded T-bolt clamp used for in high vibration hose systems?

They provide constant tension and a secure seal as hoses expand and contract with heat, pressure changes, and movement.

- handy for CAC, aircraft, automotive, marine, and industrial hose assemblies - helps prevent hose extrusion and leaks under vibration - reusable and easy to re-torque with a standard 7/16 inch nut - protects soft hoses with floating bridge and rolled edges
