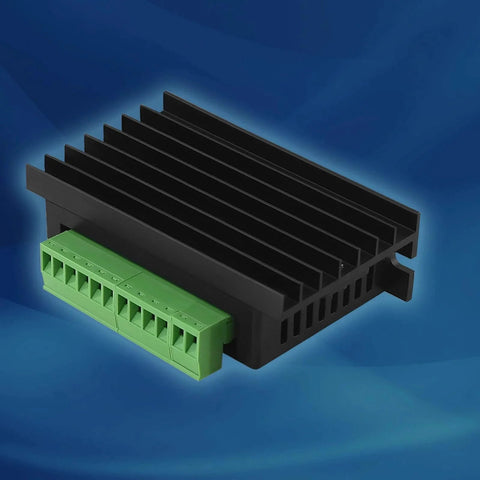

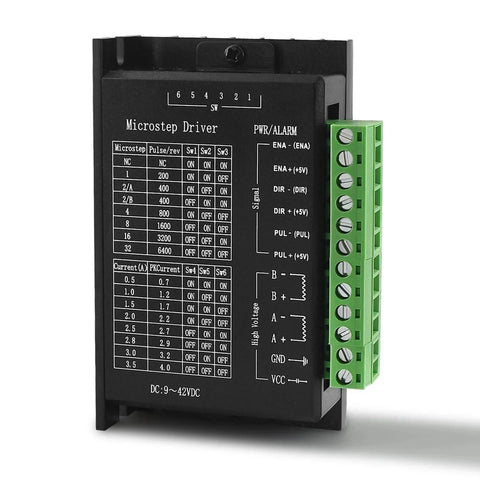

Stepper Motor Driver TB6600 4A 9-42V Nema 17 Stepper Motor Driver CNC Controller Single Axes Phase Hybrid for CNC/42 57 86 Stepper Motor (TB6600-1pcs)

TB6600 Stepper Driver for CNC - 4A, 9-42V, single unit, NEMA 17/23
✔️ 4A max current, 9-42V supply, 2-phase, NEMA 17/23 compatible

Compact and handy, this TB6600-based stepper motor driver is used to power two-phase motors in small to mid-size CNC setups. It's perfect for X-Y-Z tables, laser cutters, engraving machines, labeling systems, and pick-and-place devices, offering reliable control with a plastic-covered package for protection.

✅ Upgraded TB6600 driver with plastic cover for safer operation
✅ 9-42V DC supply and up to 4A per channel for reliable torque
✅ Supports 2-phase NEMA 17/23 motors (42/57 type) with 4/6/8 wires
✅ Simple interface for CNC controllers and compact desktop machines
✅ Great for X-Y-Z tables, laser cutters, engravers, and pick-and-place devices

💡 What is a stepper motor driver used for in CNC projects?
This handy module translates commands from a CNC controller into precise motor steps and manages motor current for smooth, reliable motion.
- Regulates current to motor coils for torque control
- Converts controller signals into precise steps for each axis
- Handy for small-to-mid size machines like CNC tables, engravers, and laser cutters
