Sugatsune HG-ITS25 Torque Hinge Stainless Steel With Free Stop Design 2.5 Nm 180 Degree Opening

Single unit stainless torque hinge HG-ITS25 for 180° opening
✔️ 2.5 N·m torque, 25.49 kgf/cm, 50 g weight, 180° swing, stainless

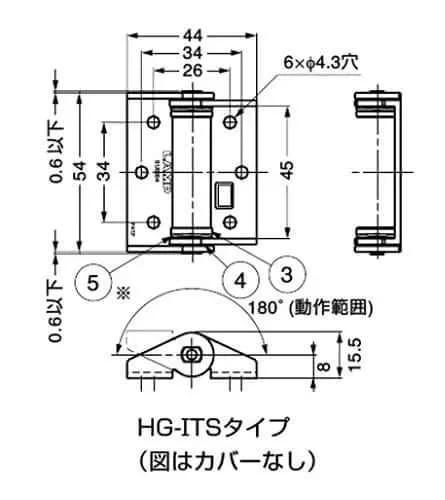

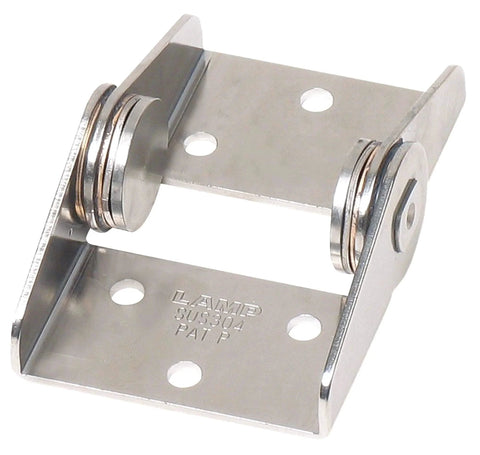

Torque hinge HG-ITS25 is a precision stainless steel hinge designed to deliver constant torque across a 0°-180° range. It's ideal for mounting monitors, surveillance gear, or compact enclosures where precise angle control and clean aesthetics matter. Use the color-matched cover (sold separately) for a seamless finish.

✅ Torque: 2.5 N·m; 25.49 kgf/cm; constant torque from 0° to 180°
✅ Free-stop design holds at any angle
✅ Materials: stainless steel, phosphorus bronze, steel
✅ Opening angle: 180°; operating temperature -14°F to 122°F (-10°C to 50°C)
✅ Durability: tested over 20,000 open/close cycles
✅ Use: monitors, surveillance cameras, enclosures; color-matched cover available

💡 What is a torque hinge and why is it handy for mounting equipment? It provides controlled opening force and holds angles without manual effort.
- constant torque across 0-180 degree range
- free-stop design holds any angle
- clean installation with a cover option for a finished look
