Sugatsune Lamp Mark HG-TS07 Torque Hinge For HG-TS Type Free Stop Adjustable Angle Stainless Steel

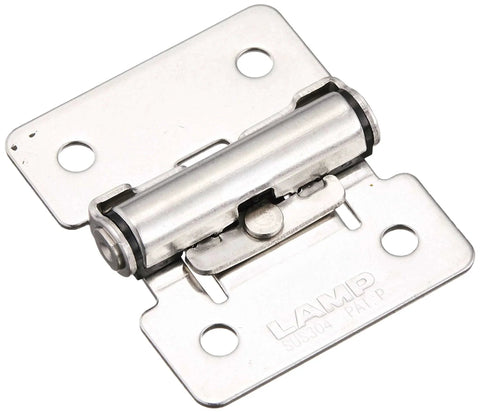

HG-TS07 Lamp Mark torque hinge for a single hinge
✔️ Free-stop torque hinge for lamp positioning, 0.7 N/m, 2.8 in (7.1 cm)

The HG-TS07 Lamp Mark torque hinge is a precision adjustable hinge designed for lamp fixtures, acoustic equipment, FA gear, and other automated assemblies. It features a free-stop function to hold any chosen angle, helping you align parts quickly and stay steady once set.

✅ Material: Stainless steel and polyacetal
✅ Torque: 0.7 N/m; initial torque -20% to +40%
✅ Operating temperature: -14°F to 122°F (-10°C to 50°C)
✅ Storage temperature: -4°F to 140°F (-20°C to 60°C)
✅ Humidity: 90% RH max; storage humidity max 95% RH
✅ Weight: 1.0 oz (27.5 g)
✅ Use: 2+ hinges per door; ensure no load on hinge
✅ Durability: 20,000 open/close cycles
✅ Not outdoors; avoid oil/grease; use in controlled environments
✅ Applications: Acoustic equipment, FA equipment, automatic equipment

💡 What is a torque hinge used for in lamp mounting and equipment enclosures?

This handy device lets you set and hold a specific angle without constant adjustment.

- Handy for securing lamp mounts and equipment enclosures in place
- Useful for repeatable angles across multiple panels
- Durable stainless steel and polyacetal construction resist wear
- Easy to install with two or more hinges per door for balanced loads
