PNEUMATIC 20mm Bore 100mm Stroke Double-Rod Double-Acting Aluminum Pneumatic Air Cylinder TN20-100

Compact double-rod pneumatic cylinder, 20mm bore, 100mm stroke

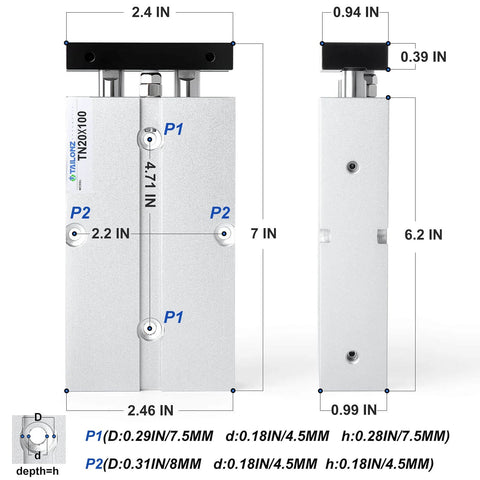

✔️ 20mm bore, 100mm stroke, PT1/8 port, aluminum alloy body

This compact double-acting air cylinder is designed for precise linear motion in tight automation spaces. Use it for clamping, lifting, or advancing parts on small packaging lines, assembly fixtures, or pick-and-place setups. Includes a rod-end fork and quick-connect hose fittings for quick, tool-free installation. Pack: 1 piece.

✅ Bore 20 mm; Stroke 100 mm; Port PT1/8; Working pressure 0-1.0 MPa (0-145 psi)

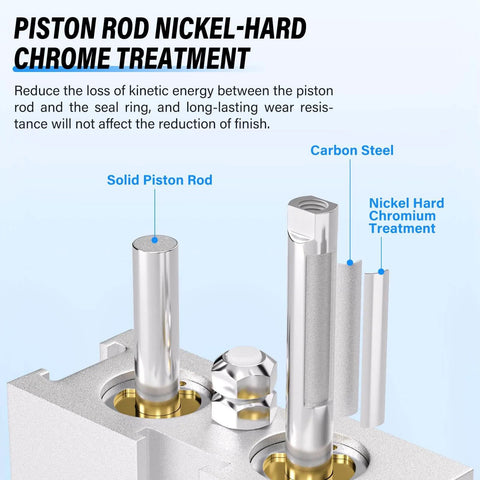

✅ Aluminum alloy body with thickened cylinder and sealed rod

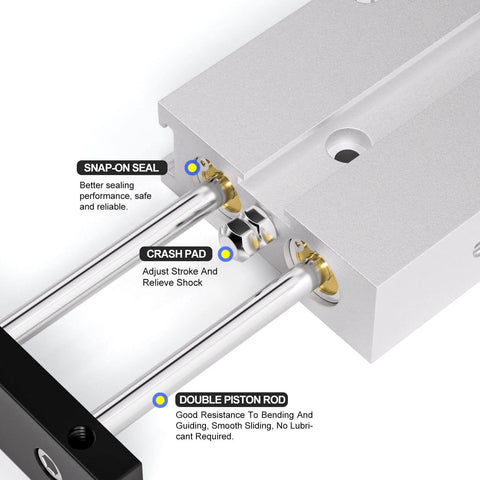

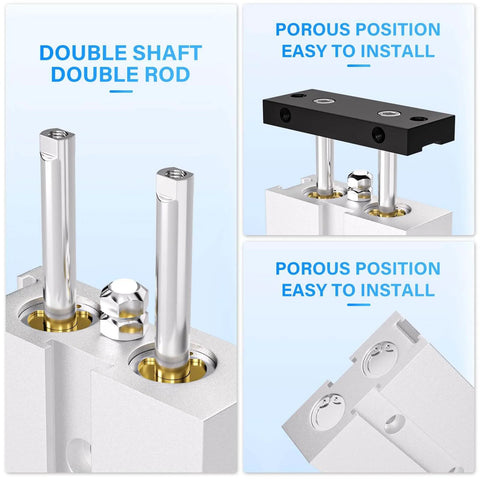

✅ Double-rod, double-acting design for push-pull motion

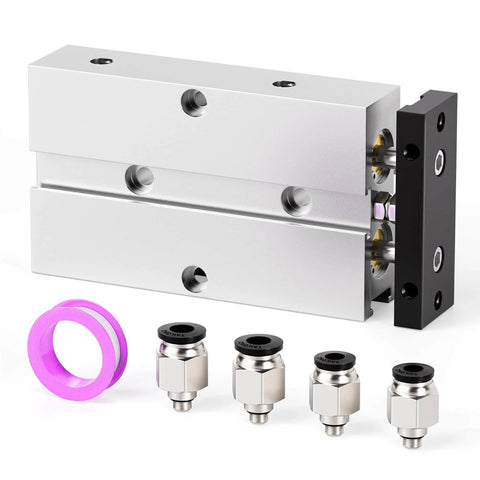

✅ Includes two 4 mm and two 6 mm quick-change hose fittings plus rod-end fork

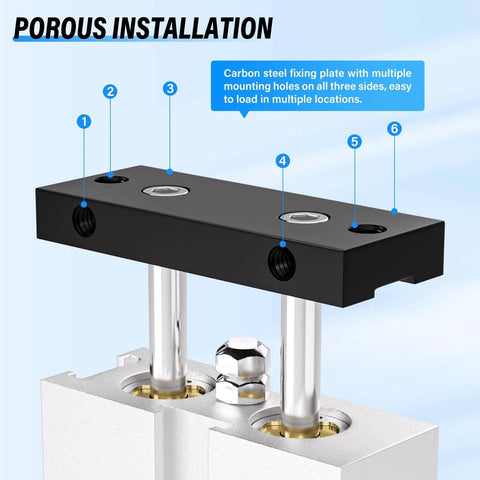

✅ Mounting rod-end fork provided for easy installation
✅ Pack: 1 piece per order; ready to install right out of the box

💡 What is a handy double-rod pneumatic cylinder used for in compact automation?

In short, it delivers reliable, compact linear motion in tight spaces and quick cycles.

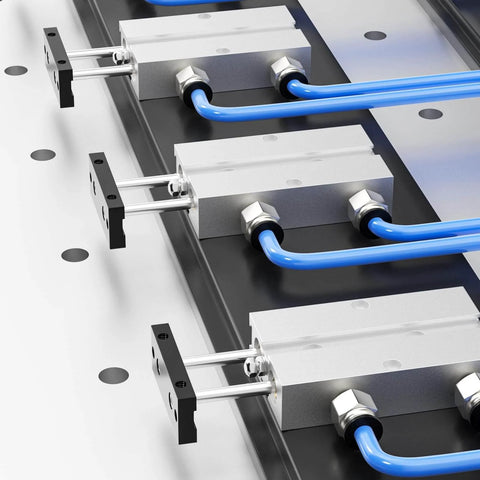

- Clamping and part transfer in small machines
- Push/pull actions in narrow enclosures
- Mounts easily with rod-end fork and standard fittings
- Works with PT1/8 ports and 0-1.0 MPa pressure
