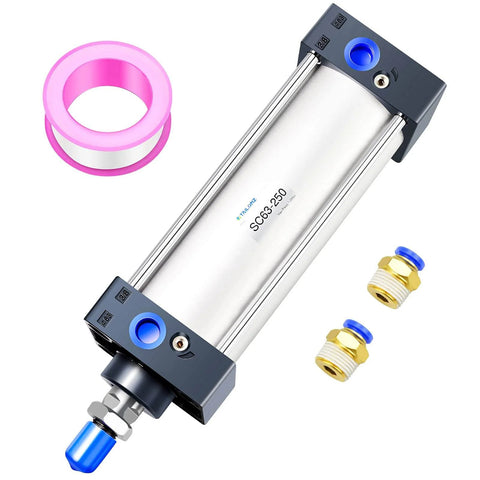

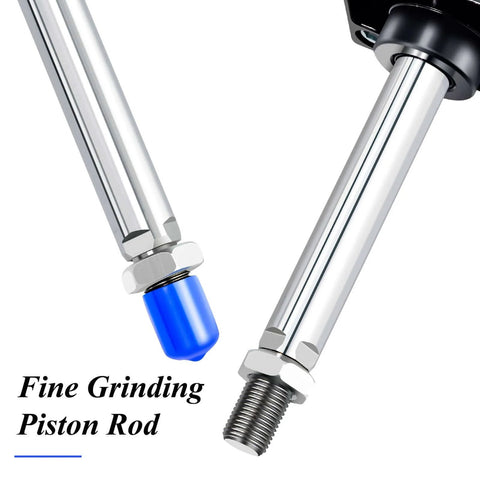

PNEUMATIC Air Cylinder SC 63-250 PT 3/8; Bore: 2 1/2 inch, Stroke: 10 inch, Screwed Piston Rod Dual Action

High performance pneumatic cylinder SC 63-250 PT 3/8 for automation
✔️ Bore 2.5 in (63 mm), stroke 10 in (250 mm), aluminum, double acting

✅ Port size PT3/8, max pressure 145 psi (1.0 MPa)

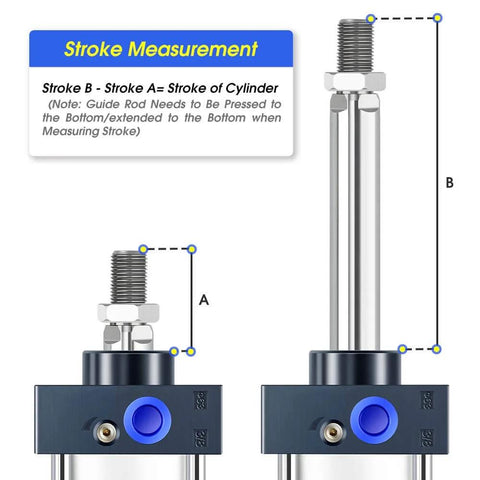

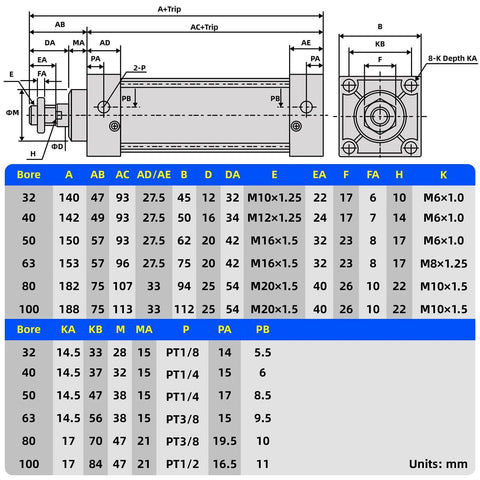

✅ Bore and stroke: 2.5 in (63 mm) bore, 10 in (250 mm) stroke
✅ Action: double acting, rod type single; fluid: air

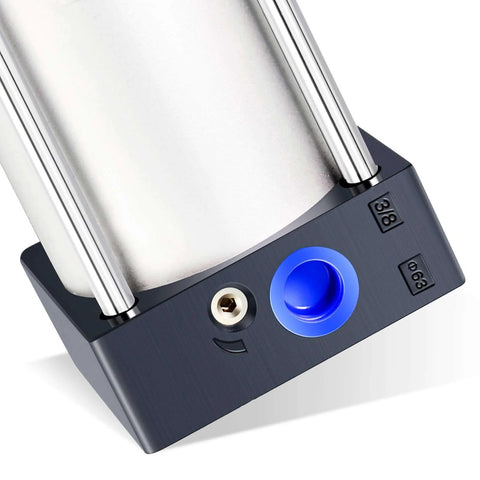

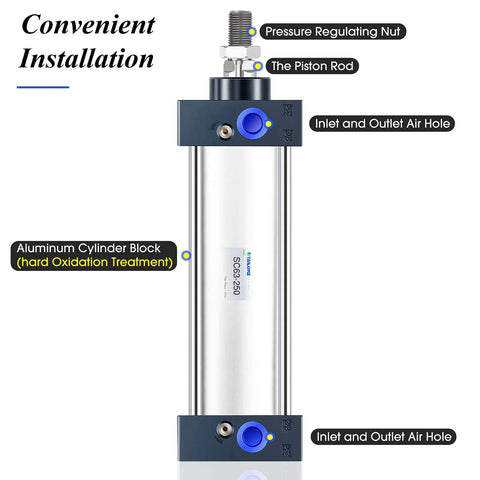

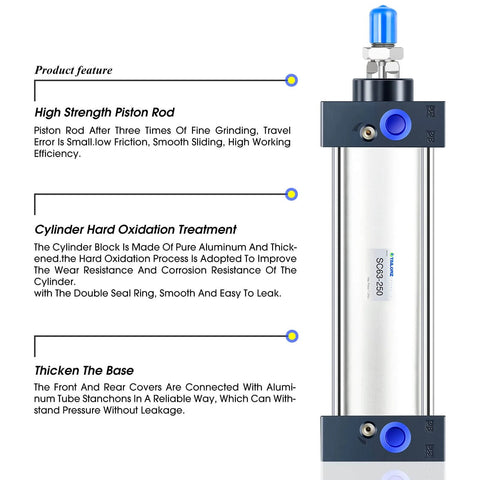

✅ Material: aluminum body with adjustable buffer; working temp -4 to 176°F
✅ Temperature range: -20 to 80°C; ported pneumatic cylinder for automation

💡 What is a pneumatic cylinder used for in automation? It’s handy for converting compressed air into precise linear motion to drive tasks in machines and assembly lines. - Provides push or pull force for clamping, lifting, or indexing
- Handy for automated pick-and-place and material handling tasks
- Delivers fast, repeatable actuation in lightweight automation setups
