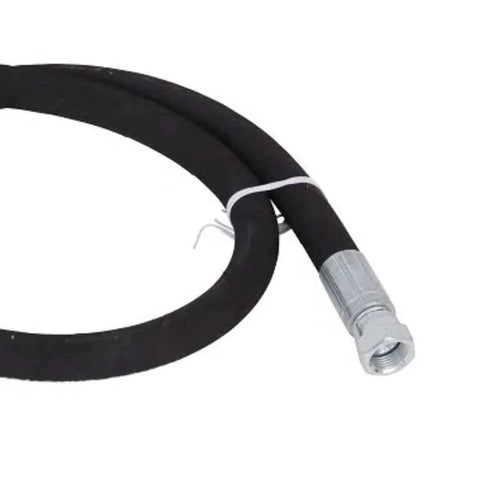

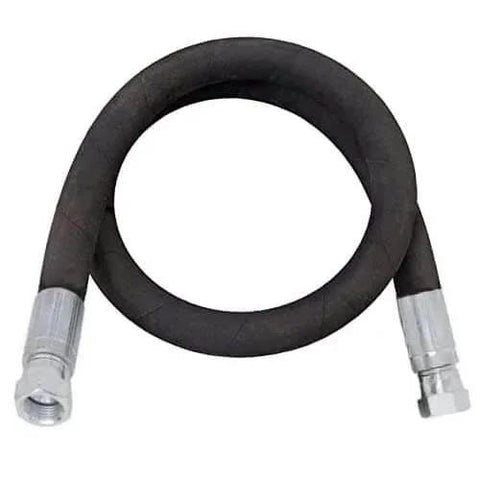

Three Eighths Inch Hydraulic Hose Assembly 120 Inch Long With Female JIC 37 Degree Crimped On Both Ends Two Wire SAE 100R2AT Reinforced Hose Max 4785 PSI 5 Inch Bend Radius Part FJX 06 06

3/8in x 120in Hydraulic Hose, Single Pack, JIC 37° Fittings
✔️ Crimped female JIC 37° ends, 2-wire SAE 100R2AT, 4,785 PSI

This hydraulic hose assembly is designed for high-pressure fluid transfer in industrial and mobile hydraulic systems. It features a reinforced 2-wire SAE 100R2AT hose with a 3/8 in (9.53 mm) bore and crimped female 3/8" JIC 37° fittings on both ends (FJX-06-06). The assembly measures 120 inches (3048 mm) long with a 5 inch (127 mm) minimum bend radius and supports a maximum working pressure of 4,785 PSI (33 MPa). It’s suitable for petroleum and water-base fluids across a broad range of industrial applications.

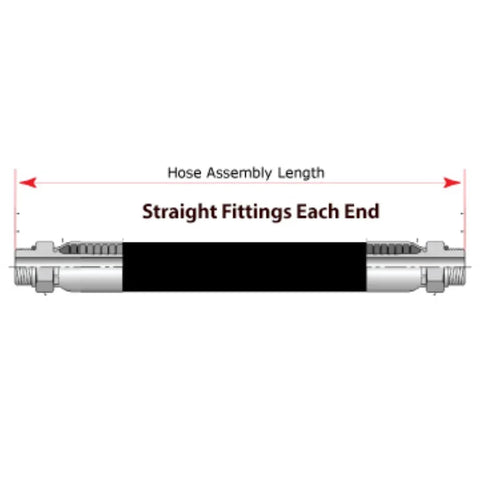

✅ 3/8" ID hose (9.53 mm) length 120" (3048 mm)
✅ 2-wire SAE 100R2AT reinforcement for rugged high-pressure service
✅ Max operating pressure 4,785 PSI (33 MPa)
✅ Bend radius 5" (127 mm) minimum for safe routing

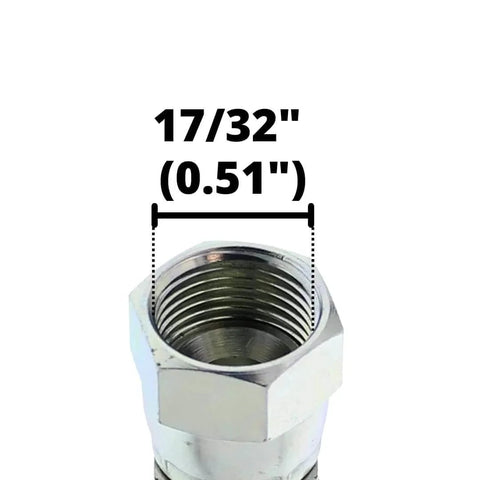

✅ Crimped ends: female 3/8" JIC 37° fittings (FJX-06-06)

💡 What is a hydraulic hose assembly used for in high-pressure industrial systems? A handy guide to its role in power transmission. - high-pressure fluid transfer between pumps and actuators - compatible with petroleum and water-base fluids for many hydraulic circuits - durable 2-wire SAE 100R2AT reinforcement with JIC 37° fittings
