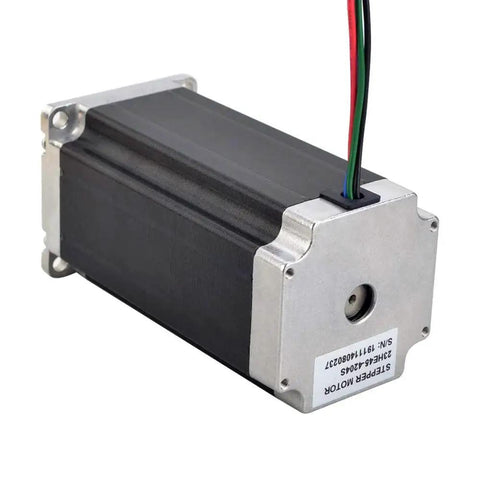

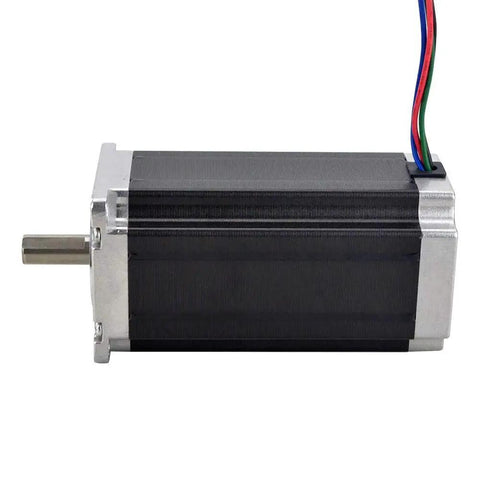

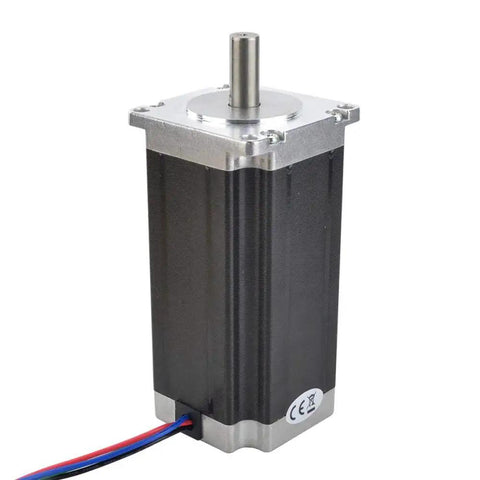

Three Pack E Series Nema 23 Stepper Motors Bipolar 1.8 Degree 3.0Nm 425ozin Holding Torque 4.2A 0.9 Ohm 3.8mH 57x57x113mm 4 Wires For CNC Machines Robotics Projects And Precision Motion Control That Slaps

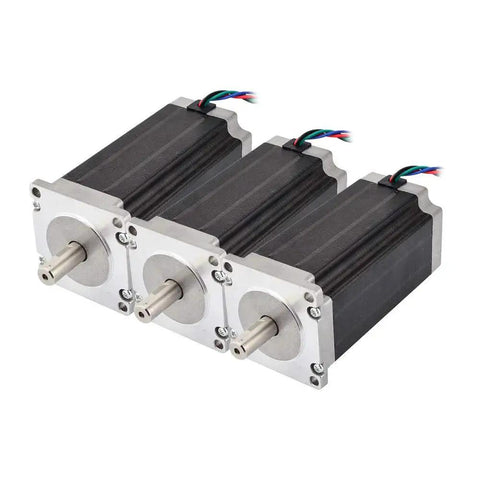

NEMA 23 Stepper Motors Pack of 3 for CNC and Motion Control
✔️ 3 pcs NEMA 23, 1.8° step, 3.0Nm, 4.2A, 0.9Ω, 57x57x113mm

Three bipolar NEMA 23 stepper motors delivered as a set of three, designed for precision motion in CNC machines, robotics, and automation projects. Each unit features a 57x57 mm frame, 113 mm body length, and Φ10 mm shaft to fit compact assemblies.

✅ 3-piece pack of NEMA 23 stepper motors with four-wire leads
✅ Frame size 57x57 mm, length 113 mm, shaft Ø10 mm, 24 mm long
✅ Holding torque 3.0 Nm (425 oz-in); rated current 4.2 A; coil resistance 0.9 Ω; inductance 3.8 mH
✅ Lead length 500 mm; insulation class B (130°C); 2-phase, 1.8° step angle
✅ Wiring: A+ BLK, A- GRN, B+ RED, B- BLU; 4-wire bipolar drive compatibility

💡 What is a NEMA 23 stepper motor used for in CNC and motion control?

These handy motors provide precise positioning and reliable torque for a range of small to mid-size automation tasks.

• Great for CNC routers, robotics, and automation projects needing repeatable motion
• Works with common bipolar drivers for controlled, smooth steps
• Delivers 3.0 Nm holding torque for robust load handling
