Three Position Rotary Changeover Switch Kit With Box 660V Two Pole 40A IP65 CE Rated 8 Terminals Yellow Fork Terminals Universal Selector Switch ON OFF ON Configuration

Three-Position Rotary Switch Kit with Box, 660V 40A
✔️ 1 kit, 2-pole, 8 terminals, IP65 CE-rated, ON-OFF-ON

Compact, rugged rotary changeover switch kit designed for industrial control panels, equipment housings, and outdoor machinery. It ships boxed with mounting accessories and a manual for quick, secure installation.

✅ Ui: 660V
✅ Ith: 40A

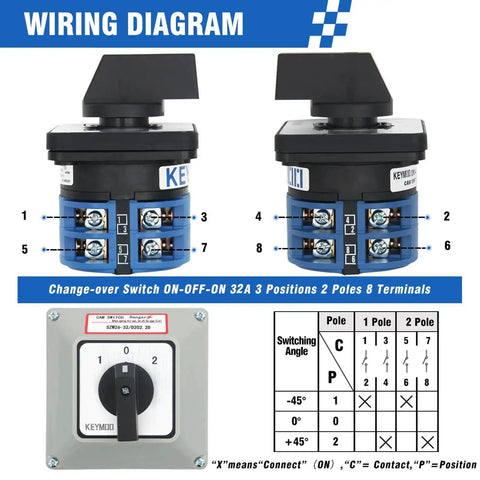

✅ Positions: 1-0-2 ON-OFF-ON, 2 poles
✅ Terminals: 8

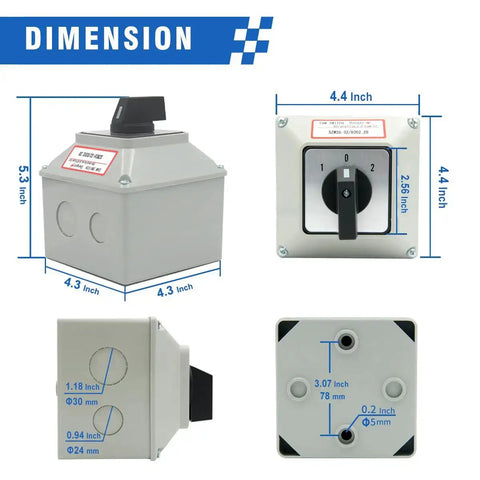

✅ Size: 2.50 in x 2.50 in x 3.5 in
✅ Weight: 0.52 lbs

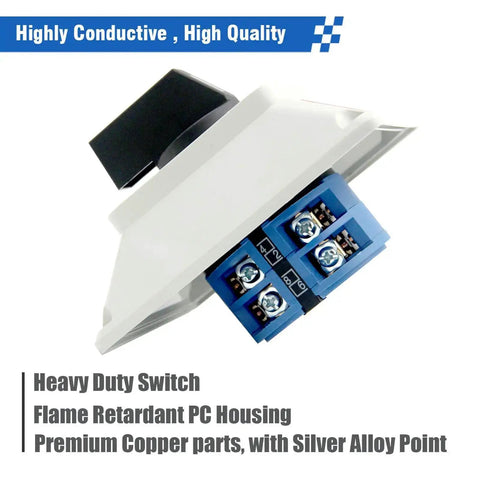

✅ Housing: Flame-retardant PC; copper parts with silver alloy points
✅ IP65 CE-rated

💡 What is a rotary changeover switch used for in industrial control panels?

These handy devices are used to manually route power paths and isolate circuits during maintenance or switching operations.

- Handy for direct control of two circuits - Supports on-off-on configurations for quick transitions - Built to endure industrial environments with IP65-rated housing - Suitable for high voltage/current applications up to 660V and 40A
