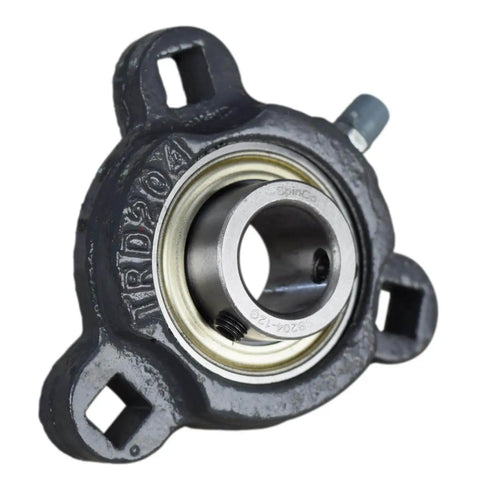

Three Quarter Inch Three Bolt Flange Bearing With Narrow Inner Ring And Two Set Screws Cast Iron Housing Grease Zerk For Relubing Interchangeable With FHSF3X20412G BTM20412 VF3S112

3/4 inch flange bearing, single unit with zerk
✔️ 3/4 in shaft, 2.60 in bolt distance, 2.81 in bolt circle

This high quality 3/4 inch three bolt flange bearing is designed to support rotating shafts in compact machinery. The unit features a narrow inner ring with two set screws for secure shaft attachment, cast iron housing, and a grease zerk for easy re-lubing.

✅ Shaft size: 3/4 in
✅ Bolt distance: 2.60 in
✅ Bolt circle: 2.81 in
✅ Center to edge: 1.88 in
✅ Overall thickness: 1.20 in
✅ Interchange: FHSF3X204-12G, BTM204-12, VF3S-112, LF-SC-012, GSFD-3/4

💡 What is a pillow block bearing used for in everyday machinery? A pillow block bearing is a handy shaft support used in many small machines and conveyors. - Works with standard sealed ball bearing inserts in flange housings - Great for conveyor and packaging line support in small machines - Suitable for use with linear slide unit setups for compact, easy-to-maintain configurations
