Spiral Wound Gasket With Flexible Graphite Core For High Temperature Variations And Thermal Cycling 38 Inch Size 38.25 ID 42.25 OD 304SS And Flexible Graphite Filler ASME B16.20 B16.47 Series A Flanges Class 400 Teadit 900038A304GR400

High-Temp Spiral Wound Gasket with Graphite Core - 38 in
✔️ 38 in nominal size, single gasket, 38.25 ID/42.25 OD, 304SS windings

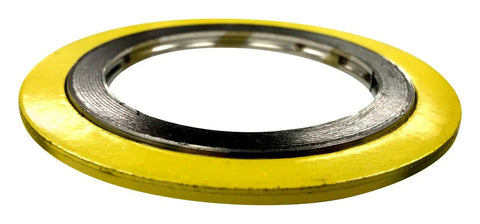

This spiral wound gasket is designed for high-temperature sealing on ASME B16.20/gasket standards for ASME B16.47 Series A Flanges Class 400. The centering ring locates the gasket on the flange face, provides additional radial strength, and acts as a compression limiter. The sealing element combines spiral windings with a flexible graphite filler to handle thermal cycling and broad temperature swings.

✅ ✅ Spiral wound gasket with metal windings and flexible graphite filler
✅ Centering ring locates gasket on flange face and acts as compression limiter
✅ Temperature rating: -150 to 842 °F (-101 to 450 °C)
✅ Size details: nominal 38 in (965 mm); ID 38.25 in (971.6 mm); OD 42.25 in (1072.4 mm)
✅ Windings: 304 stainless steel; Filler: flexible graphite
✅ Color: Yellow band with gray stripe

💡 What is a typical application for a spiral wound gasket with flexible graphite in high-temperature piping systems? This handy seal is built for ASME B16.20/B16.47 Series A Class 400 flange assemblies and environments with frequent thermal cycling. - High-temperature, high-pressure service on ASME B16.47 Series A Class 400 flanges - Resists thermal cycling and maintains seal integrity during heat swings - Easy to install and remove during routine maintenance
