NB
TRF16GUUE NB 16mm Slide Bush Bushings Miniature Motion Linear Bearings
$234.05 CAD
SKU: Kit21158
UPC: 00193019124642
UPC: 00193019124642
Item: TRF16GUUE NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 16mm
Retainer Material: resin
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 16mm
Retainer Material: resin
Quantity: One Bearing

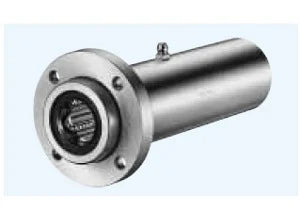

| TRF16GUUE NB Triple Wide Round Flange Pilot End Slide Bush Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
TRF16GUUE NB Triple Wide Round Flange Pilot End Type Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

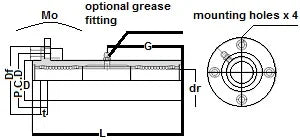

| Major Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | tolerance | mm | tolerance | ||||||
| 16 | 0-15 | 32 | 0-25 | 103 | 54 | 8 | 43 | 5.5 x 9 x 5.1 | |
