NB
TRF60GUUE NB 60mm Slide Bush Bushings Motion Linear Bearings
$3,440.39 CAD
SKU: Kit21165
UPC: 00193019124710
UPC: 00193019124710
Item: TRF60GUUE NB Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 60mm
Retainer Material: resin
Quantity: One Bearing
Type: Linear Slide Bush
Bearing Inner Diameter: 60mm
Retainer Material: resin
Quantity: One Bearing

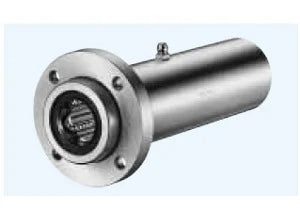

| TRF60GUUE NB Triple Wide Round Flange Pilot End Slide Bush Made in Japan:NB Linear Systems |
TRF60GUUE NB Triple Wide Round Flange Pilot End Type Miniature Slide Bush, The retainer material is resin, It is seals on both sides, series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), Made in Japan.
|

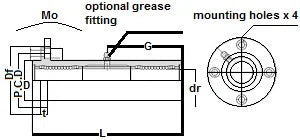

| Major Dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| dr | D | L | Df | t | P.C.D | X x Y x Z | |||
| mm | tolerance | mm | tolerance | ||||||
| 60 | 0/-25 | 100 | 0-35 | 310 | 144 | 18 | 122 | 11 x 17 x 11.1 | |
