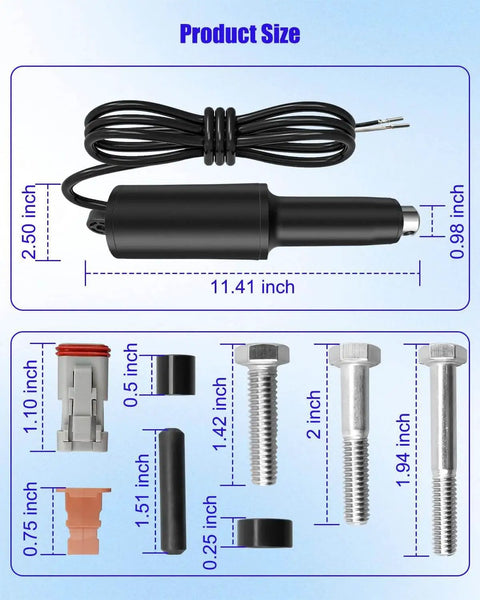

Trim Tab Actuator For Air Boats 12V Short Duty, Two And A Quarter Inch Stroke, Fits 2009 And Later Air Boat Kits And Lenco 101XD-4 Actuators, Replaces 15057-001 And 20402-001, Includes Five Sixteenth Inch Mount Hardware And Six Foot Cable

Compact 12V trim tab actuator for 2.25 inch stroke

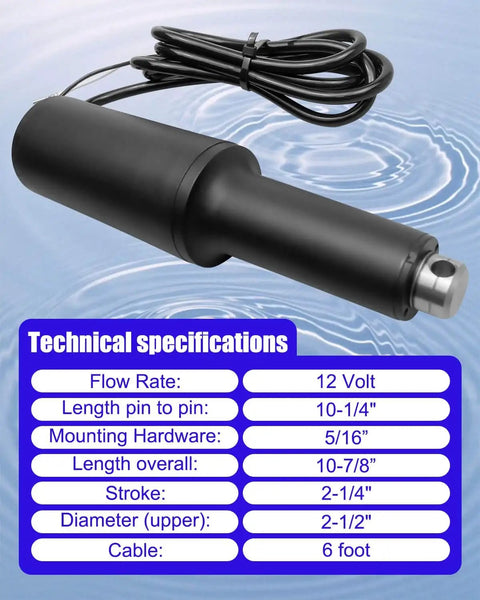

✔️ 12V high-torque motor, 2.25 inch stroke, single unit, 5/16" mounts

This compact trim tab actuator is a 12V, heavy-duty unit designed for 2009 and later air boat kits and LS trim tabs. It delivers reliable trim control under water spray and changing loads, helping maintain hull attitude and efficient planing in rough conditions. It’s built to endure harsh marine environments with rugged construction.

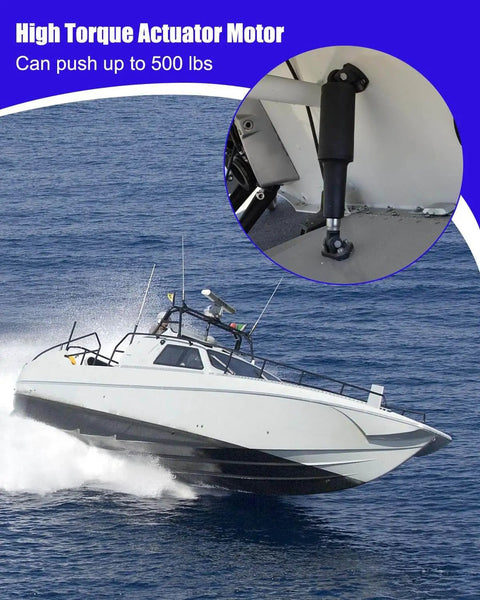

✅ 12V high-torque motor delivers up to 500 lb push with 2.25" stroke

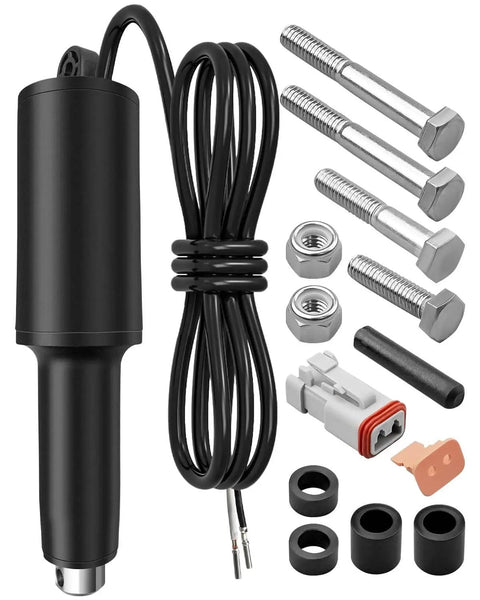

✅ 5/16" mounting hardware included and 6 ft cable with waterproof connector

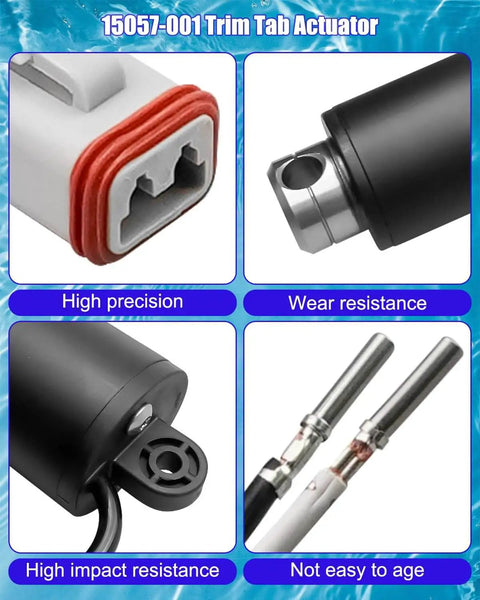

✅ Sealed housing with wiper seal and molded brass thrust bearing
✅ Durable glass-filled nylon housing and stainless steel components

💡 What is a trim tab actuator used for in boat systems?

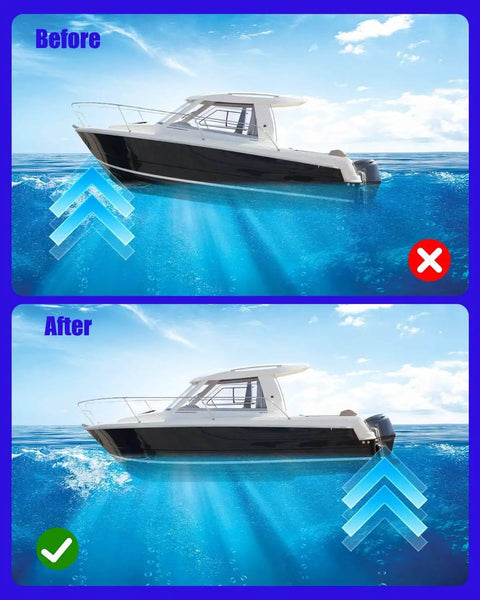

Handy device for adjusting hull trim and attitude on air boats and boats with trim tabs.

• air boat trim tab actuator offers precise hull trim control under load

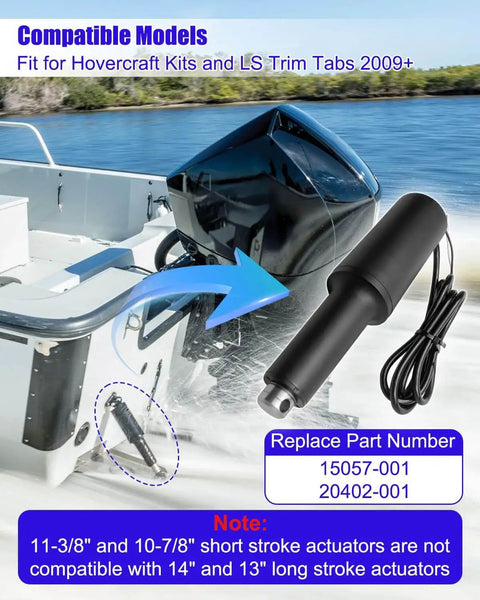

• works with 12V systems and 2009+ air boat kits
• sealed design with wiper seal, brass thrust bearing, and gland seal
• includes 5/16 inch mounting hardware and a 6 ft cable
