NB
TWD12UU NB 3/4 inch Ball Bushing Open Block Linear Motion
$179.06 CAD
SKU: Kit8125
UPC: 00193019127513
UPC: 00193019127513
Item: TWD12UU Bearing
Type: Linear ball bushing
Shaft Diameter: 3/4" inch
Quantity: One Bearing
Dynamic load rating Cr: 470 LBF
Type: Linear ball bushing
Shaft Diameter: 3/4" inch
Quantity: One Bearing
Dynamic load rating Cr: 470 LBF
| TWD12UU Type:Slide Unit Pillow Block Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |

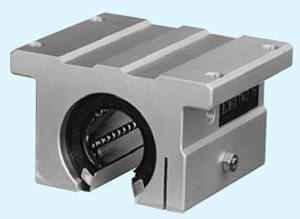

3/4" Slide Unit Pillow Block (Inch Series), the innerdiameter(bore)is 3/4" inch dimensions with steelretainer, bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Major dimensions | Mounting dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | h1 | B | C | S |
| 15/16" | 1-3/8" | 2-3/4" | 1-7/8" | 1-17/32" | 5/16" | 15/16" | 1-1/8" | 3/8" | 2-3/8" | 1-1/4" | 3/16" |
