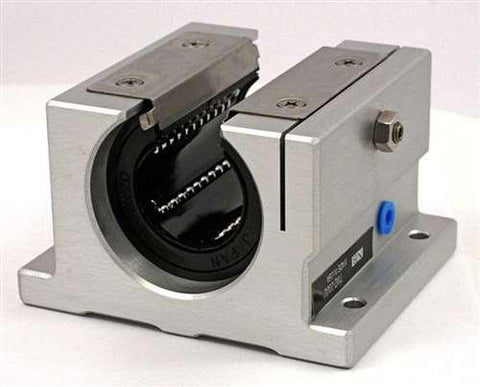

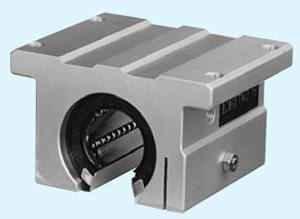

TWD24 NB 1-1/2" Ball Bushing Adjustable Block Linear Motion
$559.61 CAD
$755.48 CADyou save $195.87 CAD
SKU: TWD24_NB
UPC: 00193019133675
UPC: 00193019133675
Item: TWD24 NB Bearing
Type: Linear Ball Bushing
Shaft Diameter: 1 1/2" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 6584 N
Type: Linear Ball Bushing
Shaft Diameter: 1 1/2" inch
Quantity: One Bearing
Dynamic Load Rating Cr: 6584 N
| TWD24 NB Type:Slide Unit Pillow Block Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
1 1/2" Slide Unit Pillow Block (Inch Series), the innerdiameter(bore) is 1 1/2" inch dimensions with steelretainer, bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|

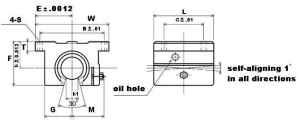

| Major dimensions | Mounting dimensions | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | h1 | B | C | S |
| 1-3/4" | 2-3/8" | 4-3/8" | 3-3/4" | 2-29/32" | 1/2" | 1-3/4" | 2-1/8" | 11/16" | 4-1/8" | 2-1/2" | 9/32" |
