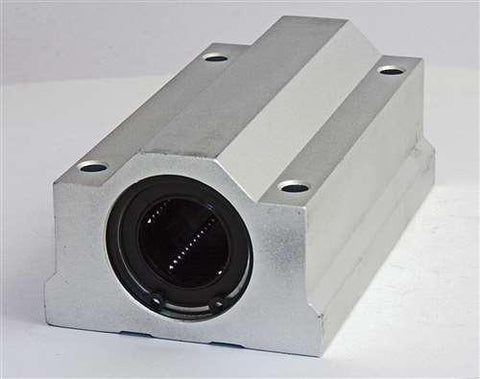

TWJ20WUU NB 1 1/4 inch Ball Bushing Adjustable Block Linear Motion
$826.25 CAD
SKU: Kit8121
UPC: 00193019127490
UPC: 00193019127490
Item: TWJ20WUU NB Bearing
Type: Linear ball bushing
Shaft Diameter: 1 1/4" inch
Quantity: One Bearing
Dynamic load rating Cr: 1,970 LBF
Type: Linear ball bushing
Shaft Diameter: 1 1/4" inch
Quantity: One Bearing
Dynamic load rating Cr: 1,970 LBF
| TWJ20WUU NB Type:Slide Unit Pillow Block Made in Japan:NB Linear Systems Nippon Bearing Linear Systems |
1-1/4" Double Wide Block, Slide Unit Pillow Block (Inch Series), the innerdiameter(bore) is 1-1/4" inch dimensions with steelretainer, bearing is a high accuracy grade linear bushings,series mainly used in the USA, NB brand (Nippon Bearing Linear Systems), made in Japan.
|
| Major dimensions | Mounting dimensions | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| h | E | W | L | F | T | G | M | B | C | S |
| 1.5" | 2" | 4" | 7.5" | 2.813" | .438" | 2.5" | 3" | 3.5" | 5.5" | .219" |
