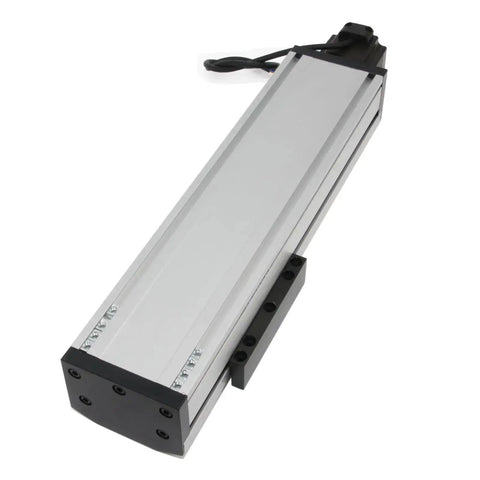

Two Hundred Millimeter Travel Fully Enclosed Dual Linear Stage Actuator With SFU1605 Ballscrew And Square Rails NEMA23 Stepper Motor For CNC Router X Y Z Axis High Precision 0 To 100 mm Per Second Speed 40 Kg Horizontal Load 20 Kg Vertical Load

High-precision linear stage actuator for CNC systems
✔️ Effective stroke of 200mm, SFU1605 ballscrew with 5mm lead, speeds up to 100mm/s, handles 40kg horizontal and 20kg vertical loads for precise CNC motion

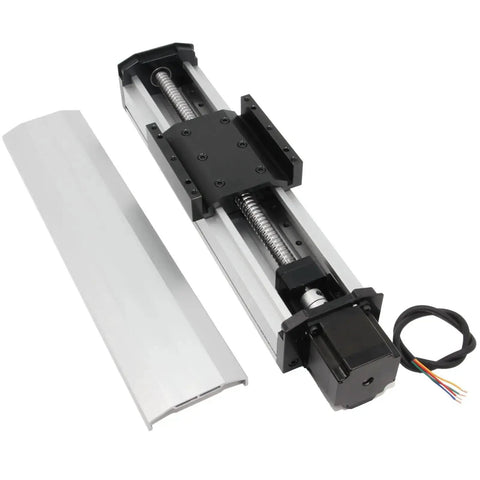

This linear stage actuator is a fully enclosed system with dual rails and a NEMA23 stepper motor, ideal for CNC routers, 3D printers, and automation setups where accurate positioning is key for tasks like milling or engraving.

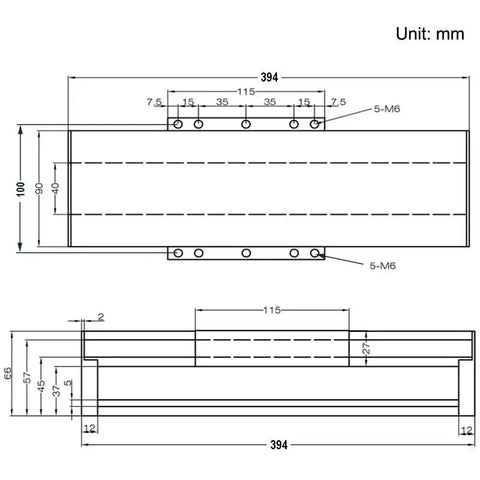

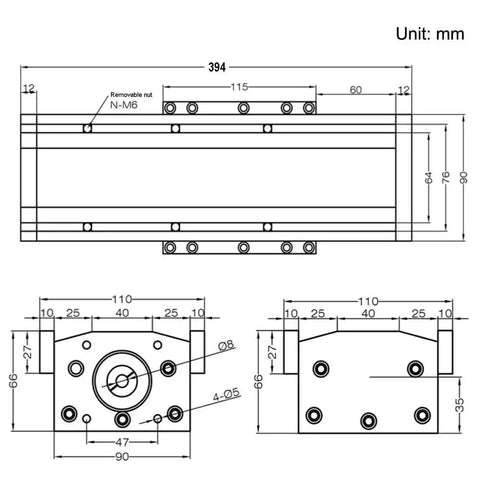

✅ Effective travel length: 200mm; total length: 450mm; designed for high-precision linear motion in CNC applications

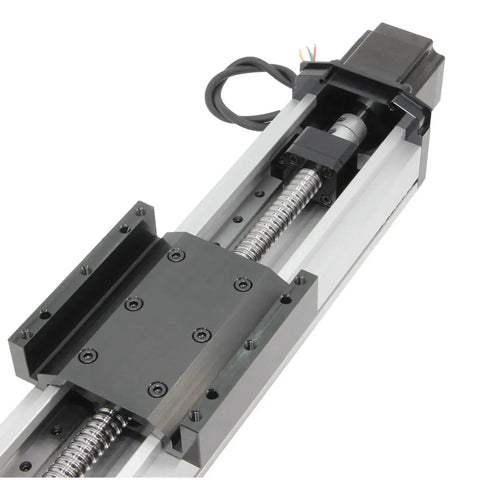

✅ Ballscrew specs: SFU1605 type, 16mm diameter, 5mm pitch, C7 level for smooth operation and repeatability
✅ Stepper motor details: 1.8-degree step angle, 57mm flange, 56mm length, 1.2N.m holding torque, 24V DC, 3A current
✅ Load capacities: Up to 40kg horizontal, 20kg vertical; repeat positioning accuracy of ±0.03mm for reliable performance

💡 How do linear stage actuators enhance precision in automated machinery?
Linear stage actuators play a key role in improving accuracy for tasks in manufacturing and robotics.
- They deliver consistent motion control to reduce errors in high-speed operations
- These units support heavier loads while maintaining tight tolerances for better output quality
- Integration with steppers like NEMA23 allows for programmable positioning in CNC setups
- They help cut down on downtime by ensuring durable, low-maintenance performance in industrial environments
