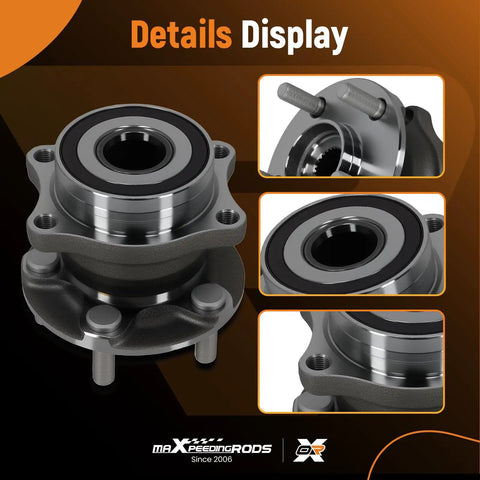

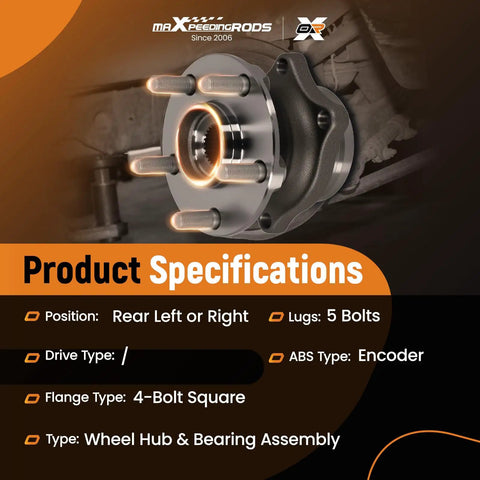

Two Piece Beefy Rear Wheel Bearing And Hub Assembly 512401 Fit Scion FRS 2013 2016 Subaru BRZ 2013 2019 Forester 2009 2013 Legacy Outback 2010 2014 Impreza 2008 2014 Toyota 86 2017 2019 5 Lug With ABS

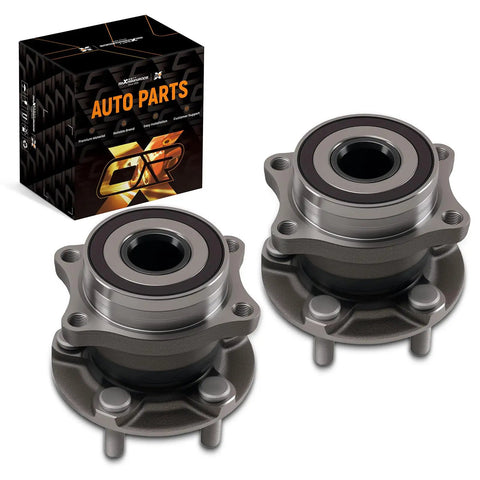

Rear Wheel Hub Assembly with ABS 512401, Pack of 2

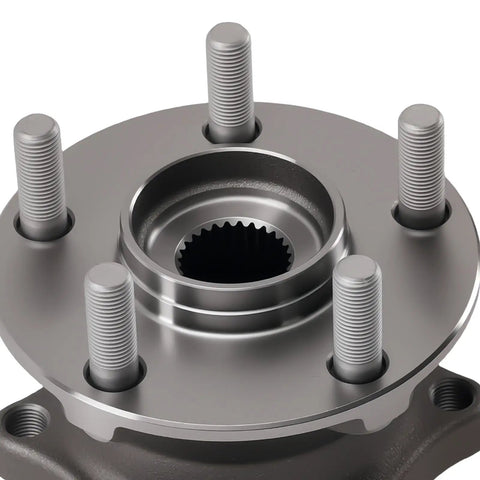

✔️ Rear left and right, 5 lug studs, 4 flange bolts, ABS encoder

This wheel hub bearing assembly is designed to replace worn rear hub units on 5-lug vehicles, delivering a secure connection between the wheel, brake system, and suspension. It supports models like Scion FR-S (2013-2016), Subaru BRZ (2013-2019), and Toyota 86 (2017-2019). The encoder-type ABS sensor provides accurate wheel-speed data while the robust bearings ensure quiet, smooth rotation and long service life.

✅ Position: Rear Left and Right
✅ Flange Bolt Quantity: 4
✅ Wheel Stud Quantity: 5
✅ ABS Type: Encoder
✅ Flange Type: Square
✅ Brake Pilot Diameter: 58 mm (2.28 in)
✅ Flange Diameter: 124 mm (4.88 in)
✅ Bolt Circle Diameter: 100 mm (3.94 in)
✅ Hub Pilot Diameter: 84 mm (3.31 in)
✅ Flange Offset: 66.5 mm (2.62 in)
✅ Wheel Pilot Diameter: 56 mm (2.21 in)
✅ Part numbers: 512401, HA590313, WA512401

Dimension	Metric	Imperial
Brake Pilot Diameter	58 mm	2.28 in
Flange Diameter	124 mm	4.88 in
Bolt Circle Diameter	100 mm	3.94 in
Hub Pilot Diameter	84 mm	3.31 in
Flange Offset	66.5 mm	2.62 in
Wheel Pilot Diameter	56 mm	2.21 in

💡 What is a wheel hub bearing assembly used for? This handy overview helps you understand a typical rear hub's role. - Supports wheel load and enables smooth rotation - Houses the bearing and ABS sensor for speed data - Maintains wheel alignment and dampens road shocks
