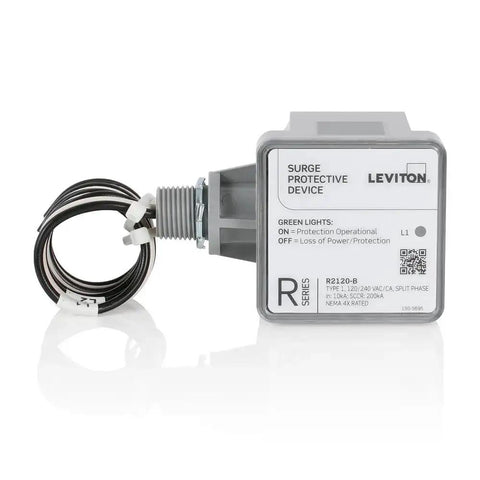

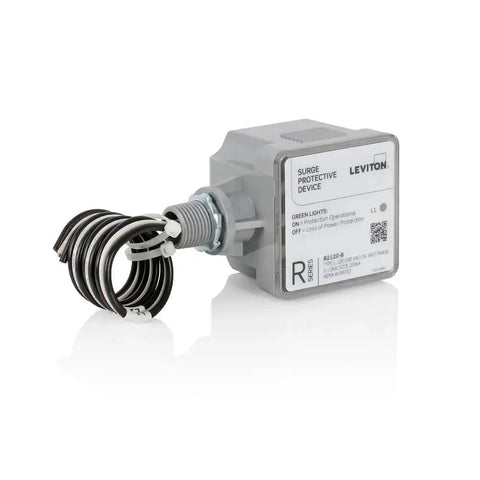

Type 1 Surge Protective Panel For Home Use, 120 And 240 Volt Split Phase Residential Surge Protection With Plug And Play Install, 36kA Per Phase, R2120B SPD, Compact And Easy Install, NEC Compliant

Residential 120/240V Type 1 SPD Surge Panel, Single Pack
✔️ 36kA per phase, 18kA per mode, 200kA SCCR

The residential surge protection panel is a compact, plug‑and‑play device designed for home service entrances, delivering Type 1 surge protection for 120/240 VAC split‑phase systems. It is NEC compliant and built to protect essential electronics and loads in typical residential installations.

✅ 120/240 VAC split-phase operation for home circuits
✅ Max surge current rating: 36 kA per phase (18 kA per mode)
✅ Short‑circuit current rating (SCCR) 200 kA
✅ MCOV 180 V with LED status monitoring
✅ NEMA 4X rated enclosure for rugged environments
✅ UL 1449 listed Type 1 surge protection panel
✅ Compact, plug‑and‑play installation for homes
✅ I-nominal rating 10 kA

💡 What is a residential surge protection panel used for in a home? This handy device shields home electronics from voltage surges and helps prevent outages.

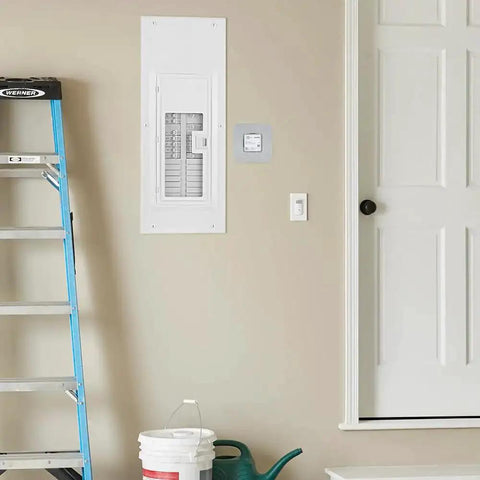

- Protects devices from transient voltage spikes - Sits at the main service panel for broad protection - NEC compliant Type 1/Type 2 protection for dwelling units - Easy plug‑and‑play installation for homeowners
