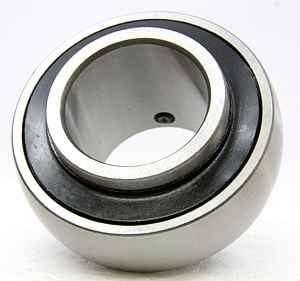

UC202-15mm Bearing Insert 15mm Mounted
$28.19 CAD
SKU: Kit18916
UPC: 00193019267042
UPC: 00193019267042
Item: UC202-15mm Bearing
Type: Cylindrical Carttridge Ball Bearing
Shaft Diameter: 15mm
Dynamic Load Rating: 12900 N
Static Load Rating: 6271 N
Type: Cylindrical Carttridge Ball Bearing
Shaft Diameter: 15mm
Dynamic Load Rating: 12900 N
Static Load Rating: 6271 N
| This item will be shipped within One Week Returns Subject to 15% restocking Fee |
|
UC202-15mm Bearing Insert Set Screw Locking 15mm Inner Diameter |
UC202-15mm Bearing Insert, Bearing is standard duty, bearing is Wide inner ring with spherical outer ring, Bearing is relubrication groove with oil hole on set screw side, bearing is nylon patched class 3A set screw, Standard seal is R-Seal.
|

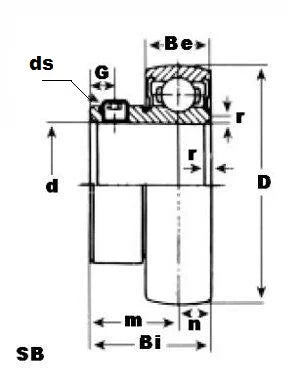

| Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|
| D | Bi | Be | r | n | m | G | W | ds(UNF-Thread) |
| 47 | 31 | 16 | 1 | 12.7 | 18.3 | 5 | 28.7 | M6xP1.0 |
