UCFA205-14 7/8" inch Black Oxide Flange Cartridge Bearing Flange Mount
UPC: 00193019332696
Type: Flange Cartridge Unit
Basic Load (Cr): 14 KN
Basic Load (Cor): 7.85 KN
Bolt Size: 3/8
UCFA205-14 Black Oxide Flange Cartridge Bearing
✔️ 7/8" Inner Diameter - Set Screw - Flange Mount
The UCFA205-14 is a black oxide plated flange cartridge bearing unit with a 7/8" inner diameter. Featuring a UC205-14 insert and FA205 housing, this set screw-style unit is designed for strong shaft retention, enhanced corrosion resistance, and long-lasting performance in mechanical frames, conveyors, and light machinery.
✅ Pack size: 1 bearing unit
✅ Inner diameter: 7/8"
✅ Insert: UC205-14 (black oxide plated)
✅ Housing: FA205 flange cartridge
✅ Locking style: Set screw
✅ Finish: Black oxide for corrosion resistance and sleek appearance
✅ Basic dynamic load rating (Cr): 14 kN
✅ Basic static load rating (Cor): 7.85 kN
✅ Bolt size: 3/8"

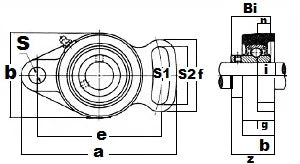

Dimensions (Inches)
| Feature | Size |
|---|---|
| a | 4-59/64" |
| e | 3-55/64" |
| i | 5/8" |
| g | 35/64" |
| S | 15/32" |
| S1 | 33/64" |
| S2 | 2" |
| b | 2-11/16" |
| f | 2-9/16" |
| z | 1-13/32" |
| Bi | 1.34" |
| n | 9/16" |
💡 Why choose a black oxide flange cartridge unit for rotating machinery?
This finish adds rust resistance and improves aesthetics while offering the same strong support expected from a cartridge-style mount.
Why it's a solid pick:
-
Set screw design secures shaft rotation
-
Black oxide offers durable corrosion protection
-
Great for agricultural equipment, conveyors, and general machinery
-
Supports moderate to heavy radial loads
Tough, precise, and ready to mount - order the UCFA205-14 today and build with confidence and corrosion control!
