UCFB206-18 Flanged Mounted Bearing 1-1/8" Shaft - 3-Bolt - Housing
UPC: 00193019213162
Type: Flanged Mounted Bearing
Shaft Diameter: 1 1/8" inch
Bolt Size: 5/16
Bearing No: UC206-18

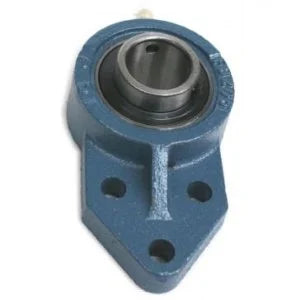

UCFB206-18 Flanged Mounted Bearing
✔️ 1-1/8" Shaft - 3-Bolt with Housing - Heavy Duty Mount
This is a UCFB206-18 three-bolt flanged mounted bearing designed for rugged support of 1-1/8" shafts. With a solid cast iron housing and pre-installed UC206-18 insert, it's ready to handle industrial-grade loads in conveyors, machines, and heavy equipment setups.
✅ Shaft diameter: 1-1/8" inch
✅ Bolt size: 5/16"
✅ Bearing insert: UC206-18
✅ Housing number: FB206
✅ Dynamic load (Cr): 19.5 kN
✅ Static load (Cor): 11.3 kN
✅ Mount type: 3-bolt flange
✅ Material: Cast iron housing + pre-lubricated bearing
✅ Pack size: 1 mounted bearing unit

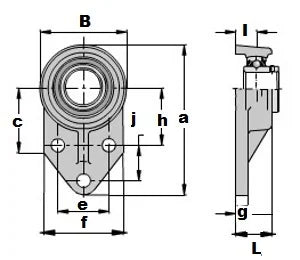

Dimensions Table (inches):
| a | h | e | j | i | g | l | b | f |
|---|---|---|---|---|---|---|---|---|
| 5-3/8 | 2-1/16 | 1-7/8 | 1-1/4 | 3/4 | 3/8 | 1-1/4 | 3-1/4 | 2-3/4 |
💡 What are flanged mounted bearings used for?
They’re made to support rotating shafts where the mounting surface is perpendicular to the shaft. The flange keeps the unit firmly in place and makes it easy to bolt to machinery frames, walls, or structural plates.
Tough, reliable, and easy to install - this flanged bearing gives your system the support it needs. Grab one now and keep your equipment turning strong!
