UCFC207-20 4-Bolt Round Flange Cartridge Unit - 1-1/4" Mounted Bearing
UPC: 00193019213377
Type: Flange Cartridge Unit
Basic Load (Cr): 25.7 KN
Basic Load (Cor): 15.4 KN
Bolt Size: 7/16" inch
UCFC207-20 Flange Cartridge Unit
✔️ 4-Bolt Round Flange - 1 1/4" Set Screw Locking
The UCFC207-20 is a heavy-duty flange cartridge unit featuring a 1 1/4" inner diameter ball bearing mounted in a 4-bolt cast housing. Designed with a set screw locking mechanism and pre-lubricated insert, this unit is ideal for conveyors, fans, and industrial equipment requiring rigid mounting and smooth performance. Sold individually.
✅ Shaft size: 1 1/4"
✅ Set screw locking style for secure fit
✅ Bearing number: UC207-20
✅ Housing number: FC207
✅ Load rating (Cr): 25.7 kN
✅ Load rating (Cor): 15.4 kN
✅ Bolt size: 7/16"
✅ Quantity: 1 complete flange unit

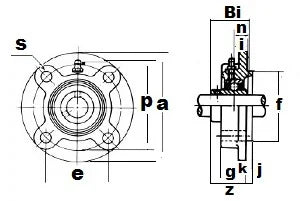

Dimensions (inches):
| a | p | e | i | s | j | k | g | f | z | Bi | n |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 5-5/16" | 4-23/64" | 3-1/16" | 7/16" | 35/64" | 5/16" | 11/32" | 1-1/32" | 3.54" | 1-7/16" | 1-11/16" | 11/16" |
💡 Why choose a flange cartridge bearing unit for industrial machinery?
Because it offers solid mounting, easy maintenance, and durable support under constant motion
4-bolt round housing allows secure mounting
Pre-lubed insert bearing for smooth rotation
Set screws grip the shaft firmly under load
Perfect for fans, augers, and machinery frames
When strength meets simplicity, you get the UCFC207-20 - mount it up and keep your operation running solid!
