VXB

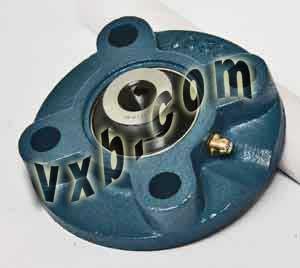

UCFC210-30 Flange Cartridge Bearing 1 7/8"inch Bore Mounted Bearing
$121.81 CAD
$164.43 CADyou save $42.62 CAD
SKU: Kit18435
UPC: 00193019262955
UPC: 00193019262955
Item: UCFC210-30 Bearing
Type: Flange Cartridge Unit
Basic Load Dynamic (Cr): 35,100 N
Basic Load Static (Cor): 23,300 N
Bolt Size: 1/2" Inch
Type: Flange Cartridge Unit
Basic Load Dynamic (Cr): 35,100 N
Basic Load Static (Cor): 23,300 N
Bolt Size: 1/2" Inch
| UCFC210-30 Flange Cartridge Unit 1 7/8" Inch Inner Diameter |
UCFC210-30 Flange Cartridge Unit, Set Screw Type, the inner Diameter is 1 7/8" Inch.
|

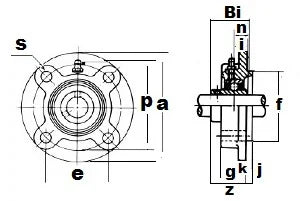

| Dimensions (Inches) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| a | p | e | i | s | j | k | g | f | z | Bi | n |
| 6-1/2" | 5-7/16" | 3-27/32" | 25/64" | 5/8" | 15/32" | 9/16" | 1-7/64" | 4-21/64" | 1-11/16" | 2-1/32" | 3/4" |
