UCFC215-47 Flange Cartridge Bearing 2 15/16"inch Bore Mounted
$344.52 CAD
$465.09 CADyou save $120.57 CAD
SKU: Kit18439
UPC: 00193019262993
UPC: 00193019262993
Item: UCFC215-47 Bearing
Type: Flange Cartridge Unit
Basic Load Dynamic (Cr): 67,400 N
Basic Load Static (Cor): 48,300 N
Bolt Size: 5/8" Inch
Type: Flange Cartridge Unit
Basic Load Dynamic (Cr): 67,400 N
Basic Load Static (Cor): 48,300 N
Bolt Size: 5/8" Inch
| UCFC215-47 Flange Cartridge Unit 2 15/16" Inch Inner Diameter |
UCFC215-47 Flange Cartridge Unit, Set Screw Type, the inner Diameter is 2 15/16" Inch.
|

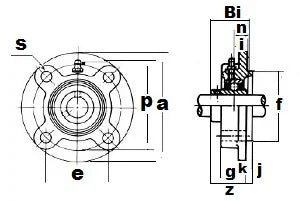

| Dimensions (Inches) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| a | p | e | i | s | j | k | g | f | z | Bi | n |
| 8-21/32" | 7-1/4" | 5-1/8" | 23/32" | 3/4" | 5/8" | 23/32" | 1-37/64" | 6-19/64" | 2-15/32" | 3-1/16" | 1-5/16" |
