UCFC217-52 Flange Cartridge Bearing Unit 3 1/4" Bore Mounted Bearing
$559.61 CAD
$755.48 CADyou save $195.87 CAD
SKU: Kit18487
UPC: 00193019263402
UPC: 00193019263402
Item: UCFC217-52 Bearing
Type: Flange Cartridge Unit
Basic Load Dynamic (Cr): 84,000 N
Basic Load Static (Cor): 61,900 N
Bolt Size: 3/4" Inch
Type: Flange Cartridge Unit
Basic Load Dynamic (Cr): 84,000 N
Basic Load Static (Cor): 61,900 N
Bolt Size: 3/4" Inch
| UCFC217-52 Flange Cartridge Unit 3 1/4" Inch Inner Diameter |
UCFC217-52 Flange Cartridge Unit, Set Screw Type, the inner Diameter is 3 1/4" Inch.
|

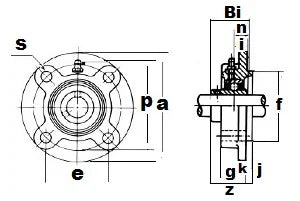

| Dimensions (Inches) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| a | p | e | i | s | j | k | g | f | z | Bi | n |
| 9-27/32" | 8-3/16" | 5-51/64" | 23/32" | 29/32" | 23/32" | 25/32" | 1-25/32" | 7-5/64" | 2-3/4" | 3-3/8" | 1-11/32" |
