VXB
UCNFL204-12 3/4"inch Bearing Flanged Housing 2-Bolt Mounted Bearing
$51.38 CAD
$69.36 CADyou save $17.98 CAD
SKU: Kit17741
UPC: 00193019047071
UPC: 00193019047071
Item: UCNFL204-12 Bearing
Type: Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 3/4" Inch
Bolt Size: 3/8" inch
Type: Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 3/4" Inch
Bolt Size: 3/8" inch

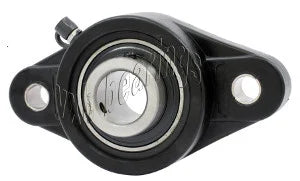

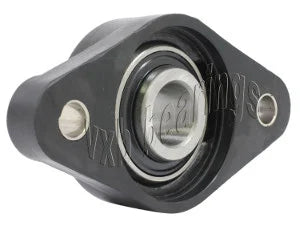

| UCNFL204-12 Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing 3/4" Inch Inner Diameter |
UCNFL204-12 Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing, measures an inner diameter of 3/4" Inch.
|

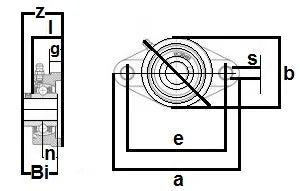

| Dimensions (inch) | ||||||||
|---|---|---|---|---|---|---|---|---|
| a | e | b | g | l | S | z | Bi | n |
| 4-31/64" | 3-35/64" | 2-35/64" | 7/16" | 1-3/64" | 7/16" | 1-21/64" | 1-7/32" | 1/2" |
