UCNFL204 20mm Bearing Flanged Cast Housing 2-Bolt Mounted Bearing


$51.38 CAD $69.36 CADyou save $17.98 CAD
SKU: Kit17742
UPC: 00193019058862
Item: UCNFL204 Bearing
Type: Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 20mm
Bolt Size: 3/8" inch

UCNFL204 Thermoplastic Flange Cast Housing
2 Bolt Mounted Bearing
20mm Inner Diameter

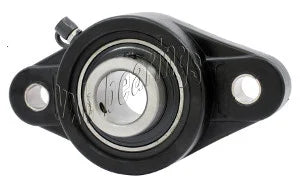

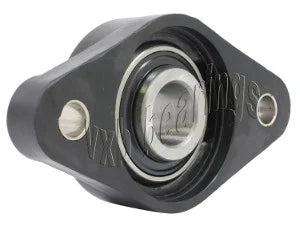

UCNFL204 Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing, measures an inner diameter of 20mm.

  • UCNFL204 Bearing
  • Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
  • Material: Thermoplastic
  • Shaft Diameter: 20mm
  • Bolt Size: 3/8" inch
  • Basic Load Cr: 12,800 N
  • Basic Load Cor: 6,650 N
  • Bearing No: UC204
  • Housing No: NFL204
  • Quantity: 1 Bearing

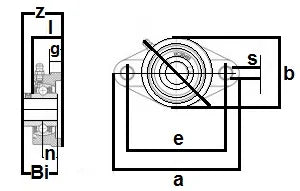

Dimensions (mm)
a e b g l S z Bi n
114 90 65 11.4 26.5 11 33.7 31 12.7
