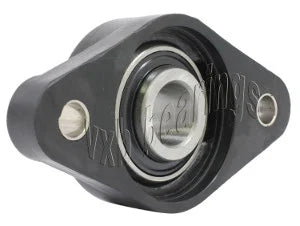

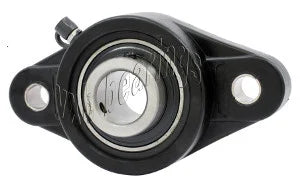

UCNFL205-16 1"inch Bearing Flanged Housing 2-Bolt Mounted Bearing
$55.19 CAD
$74.49 CADyou save $19.30 CAD
SKU: Kit17743
UPC: 00193019045305
UPC: 00193019045305
Item: UCNFL205-16 Bearing
Type: Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 1" Inch
Bolt Size: 3/8" inch
Type: Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 1" Inch
Bolt Size: 3/8" inch
| UCNFL205-16 Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing 1" Inch Inner Diameter |
UCNFL205-16 Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing, measures an inner diameter of 1" Inch.
|

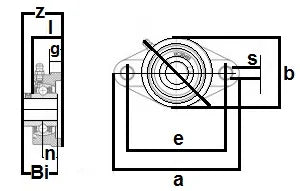

| Dimensions (mm) | ||||||||
|---|---|---|---|---|---|---|---|---|
| a | e | b | g | l | S | z | Bi | n |
| 5-5/32" | 3-29/32" | 2-47/64" | 17/32" | 1-9/64" | 7/16 | 1-7/16" | 1-21/64" | 9/16" |
