UCNFL209 45mm Bearing Flanged Cast Housing 2-Bolt Mounted Bearing
UCNFL209 45mm Bearing Flanged Cast Housing 2-Bolt Mounted Bearing
UCNFL209 45mm Bearing Flanged Cast Housing 2-Bolt Mounted Bearing
UCNFL209 45mm Bearing Flanged Cast Housing 2-Bolt Mounted Bearing
VXB

UCNFL209 45mm Bearing Flanged Cast Housing 2-Bolt Mounted Bearing


$100.87 CAD $136.16 CADyou save $35.29 CAD
SKU: Kit17752
UPC: 00193019239100
Item: UCNFL209 Bearing
Type: Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 45mm
Bolt Size: 1/2" inch

UCNFL209 Thermoplastic Flange Cast Housing
2 Bolt Mounted Bearing
45mm Inner Diameter

UCNFL209 Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing, measures an inner diameter of 45mm.

  • UCNFL209 Bearing
  • Thermoplastic Flange Cast Housing 2 Bolt Mounted Bearing
  • Material: Thermoplastic
  • Shaft Diameter: 45mm
  • Bolt Size: 1/2" inch
  • Basic Load Cr: 34,100 N
  • Basic Load Cor: 21,300 N
  • Bearing No: UC209
  • Housing No: NFL209
  • Quantity: 1 Bearing

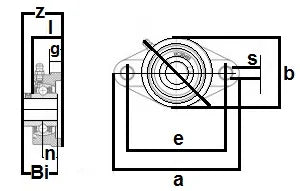

Dimensions (mm)
a e b g l S z Bi n
188.5 148.5 108 21 41 17 54.2 49.2 19
