UCPA205 Bearing 25mm Set Screw Tapped Base Pillow Block Bearing

UCPA205 Tapped Base Pillow Block Bearing
✔️ Set Screw Lock - 25mm Shaft Diameter - Normal Duty

The UCPA205 is a tapped base pillow block unit designed for solid mounting and reliable shaft support. Featuring a wide inner ring and set screw locking for secure installation, it's ideal for machinery and industrial systems where a low-profile, rigid bearing housing is needed.

✅ Shaft Diameter: 25mm
✅ Mounting Style: Tapped Base (PA205 Housing)
✅ Locking Method: Dual Set Screws
✅ Bearing Number: UC205
✅ Load Rating (Dynamic): 14 kN
✅ Load Rating (Static): 7.85 kN
✅ Quantity: 1 Pillow Block Bearing Unit

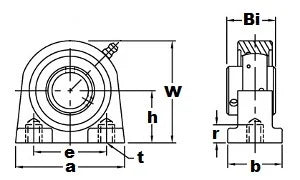

Dimensions (mm):
✅ Center Height (h): 36.5
✅ Overall Length (a): 84
✅ Bolt Hole Distance (e): 56
✅ Housing Width (b): 38
✅ Housing Radius (r): 15
✅ Base Width (w): 72
✅ Bearing Width (Bi): 34
✅ Bolt Thread Size: M10

💡 Why choose a tapped base pillow block bearing?
Tapped base units offer a compact footprint and strong mounting support - ideal for limited space and vibration-sensitive equipment.

Tough, handy, and ready for action - perfect for conveyor systems, fans, and agricultural machinery.
