VXB

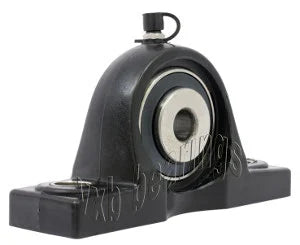

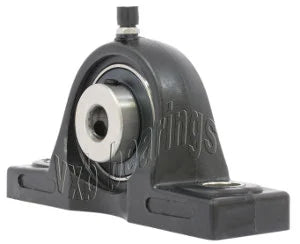

UCPPL206-18 1-1/8" Pillow Block Mounted Bearing
$89.45 CAD
$120.75 CADyou save $31.30 CAD
SKU: Kit17710
UPC: 00193019234730
UPC: 00193019234730
Item: UCPPL206-18 Bearing
Type: Thermoplastic Pillow Block Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 1 1/8" Inch
Bolt Size: 1/2" inch
Type: Thermoplastic Pillow Block Mounted Bearing
Material: Thermoplastic
Shaft Diameter: 1 1/8" Inch
Bolt Size: 1/2" inch
| UCPPL206-18 Thermoplastic Pillow Block 1 1/8" Inch Inner Diameter |
UCPPL206-18 Thermoplastic Pillow Block, bearing is made from Thermoplastic, Inner Diameter is 1 1/8" Inch.
|

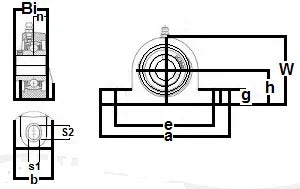

| Dimensions (inch) | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| h | a | e | b | s1 | s2 | g | W | Bi | n |
| 1-11/16" | 6-13/32" | 4-11/16" | 1-13/16" | 35/64" | 45/64" | 45/64" | 3-5/16" | 1-1/2" | 5/8" |
